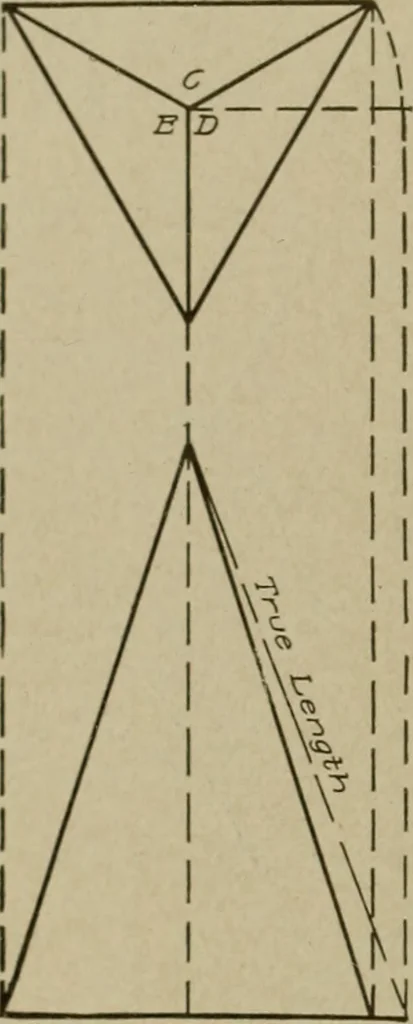

along an arc drawn withradius equal to VI; join 1 and 13 with V, and the resulting sectoris the development of the cone from vertex to base. In order torepresent on the development the circle cut by the section plane DF,draw, from the vertex V as a center and with VF as a radius, the arc F C. The… … Plan and El< of Triangular Pyramid
