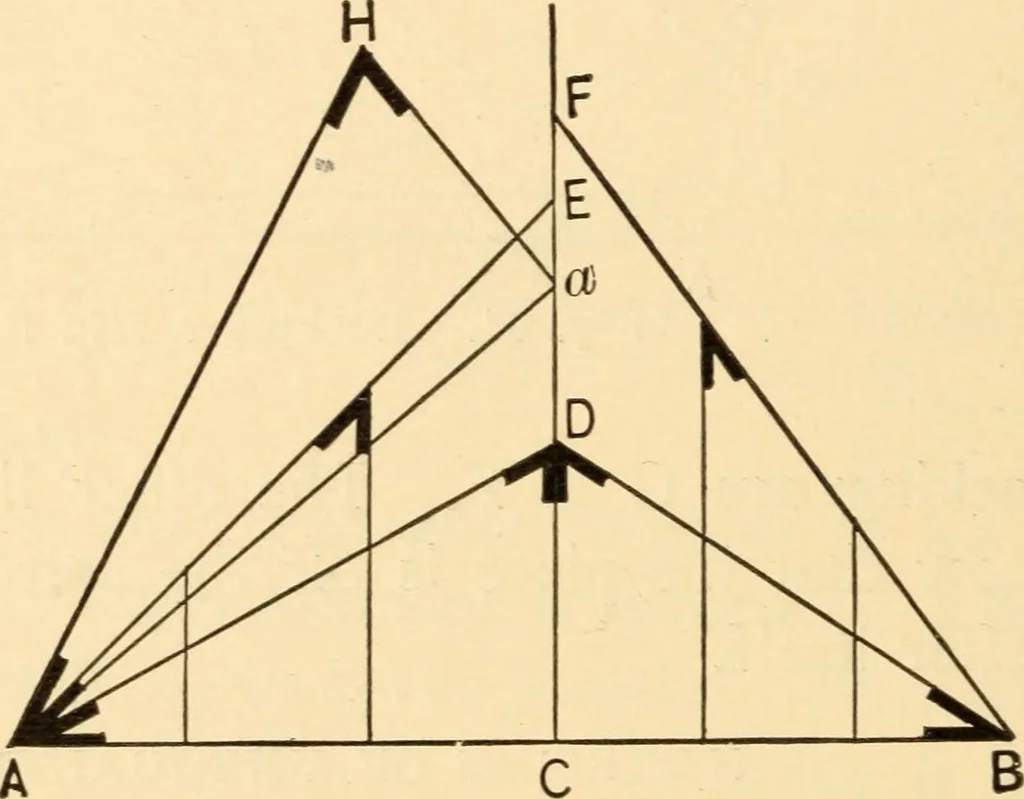

rpendicular line the length of the common rafteron the short side of the hip C E. Connect E withA for the length of the hip and position for findingthe length and bevel of jacks on the short side ofthe hip. A bevelset in the anglewhere they jointhe hip line A Ewill give thebevel across theback. The… … Fig. 62.—Diagram Showing How Method Pre-sented in Fig. 58 may be Varied for Roofsof Unequal Pitches. THE BUILDERS GUIDE. 02 connect F with B for the hip and position for findingthe length and bevel of jacks on the long side of thehip. A bevel set in the angle where they join the hipline F B will…
