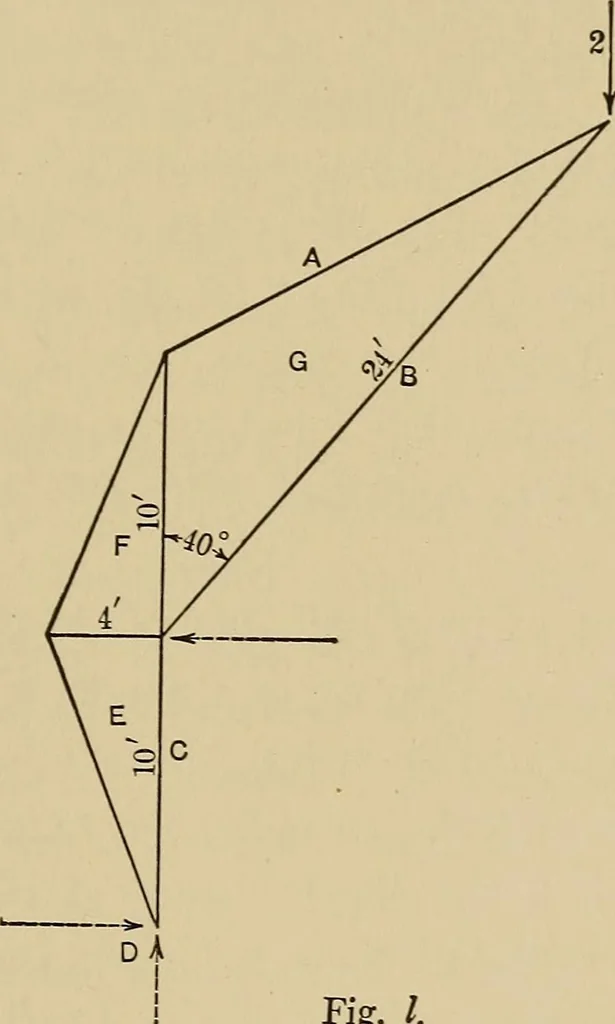

Fig. k. framed structures — RECIPROCAL DIAGRAM 183 10. Complete the frame diagram of problem 9 and construct the re-ciprocal diagram, tabulating the magnitudes and kinds of stresses in themembers. Scales: Linear, jV inch = I foot; load, ^\ inch = i ton. II. The crane of Fig. / supports a load of 2… … 2 tons Fig. /. 12. Calculate by the method of sections the magnitude and kind ofstress in each of the members of the crane of Fig. m that is cut by the hne xy.
