The elements of the mechanics of materials and of power transmission (1911)
King, William Richard, 1852- · New York, J. Wiley & sons; [etc., etc.] · leaf 231

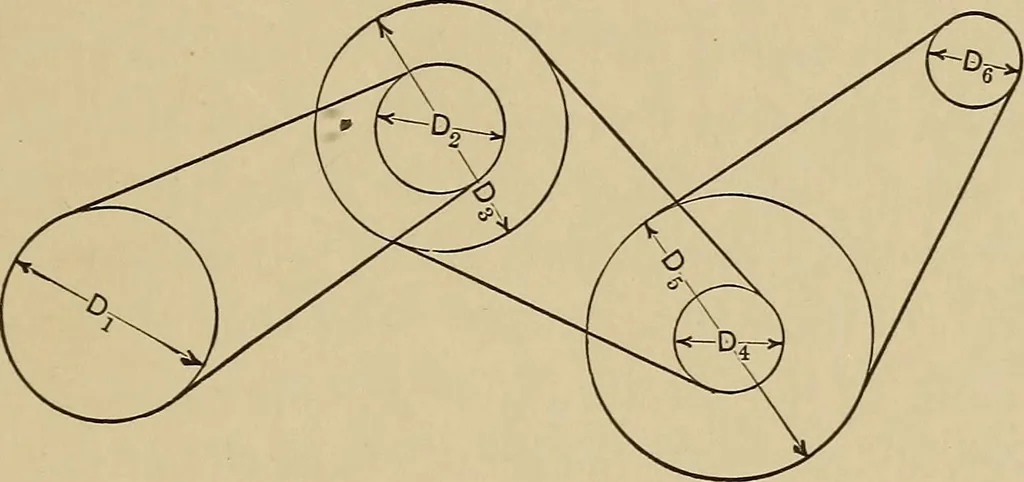

e outer surface of the rim of eachpulley will have the same velocity as the belt; so if we denoteby Di and D2 the diameters of the driver and follower pul-leys respectively, and by Ni and N2 their revolutions per minute,we shall have Speed of outer surface of driver rim = ttA ^^i,and Speed of outer… … Fig. I. When motion is transmitted from one shaft to another bybelting, one or more shafts intervening, as in Fig. i, we shall have N2 Di N^ A ^^ N^ A* 2 22 THE ELEMENTS OF POWER TRANSMISSION Taking the product of these equations, member by member,and remembering that N2 = N3, and N^ = N5, we have…
Mechanics, Applied · Power transmission
