The elements of the mechanics of materials and of power transmission (1911)
King, William Richard, 1852- · New York, J. Wiley & sons; [etc., etc.] · leaf 259

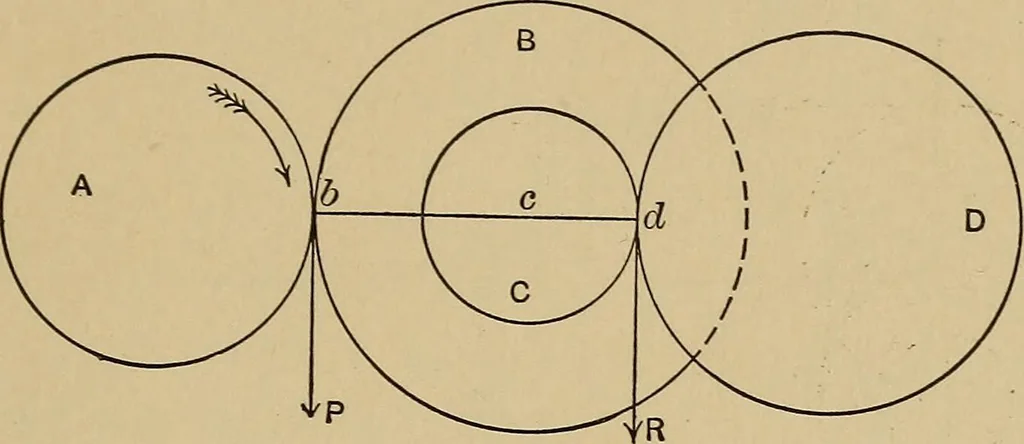

t of a large power through a small dis-tance is utihzed in making a smaller resistance move through amuch greater distance. In the two cases the desired results werepower and velocity respectively, the underlying mechanical TRANSMISSION BY TOOTHED WHEELS 249 principle being that, what is gained in… … Fig. 14. Suppose the wheels B and C of Fig. 14 to be fixed on theaxis c. The driving power P is applied through the wheel Atangentially to the pitch surface of the teeth in contact at h,the tendency being to turn the wheels B and C in a contra-clockwise direction about axis c. The action of P is…
Mechanics, Applied · Power transmission
