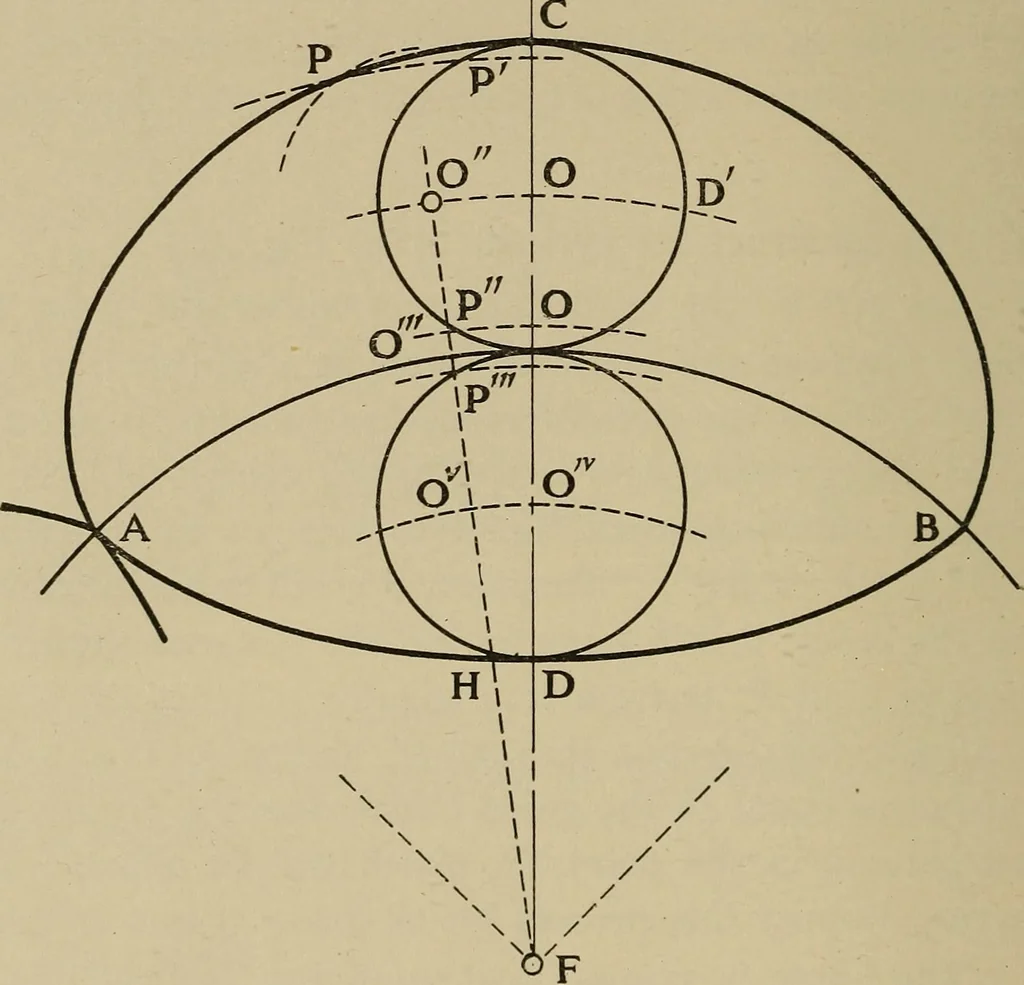

Irregular Curves and Geometrical Drawing 103 tangent at A is perpendicular to the directrix. If the circlecontinued to roll on AB it would generate another loop, andthe point, A, would be a cusp of the curve. In gear design,only a small portion of the curve, in the neighborhood of Aor B, would be…
