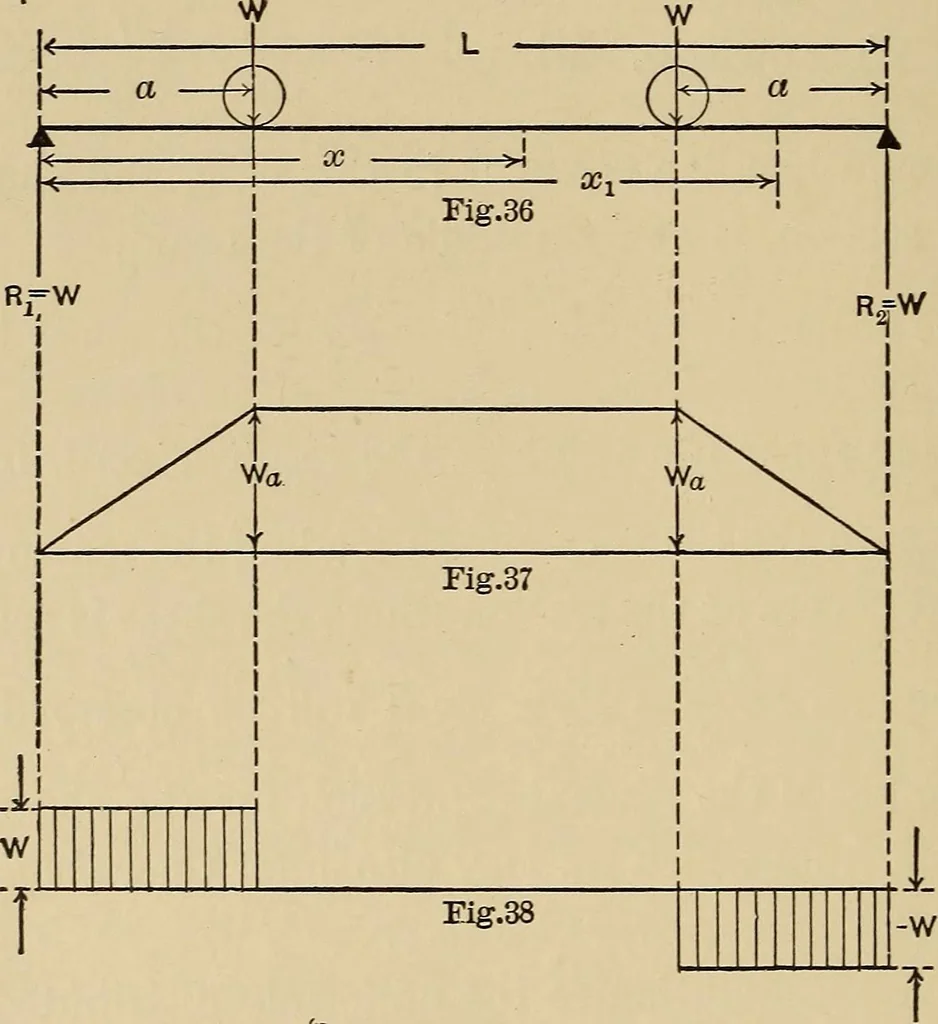

be zero, because the shearis not necessarily zero at any section. If the construction ofthe shear diagram shows that the shear is not zero at any sec-tion, it will also show that at some one or more sections theshear suddenly changed sign, or passed through zero, and themaximum bending moment will… … At the section under the load nearest the left support, M =Wa; at any section between the loads and distant x from the leftsupport the bending moment is M^ = Wx — W (x — a) = Wa;Sit any section between the second load and the right support BENDING-MOMENT AND SHEAR DIAGRAMS 39 and distant Xi from…
