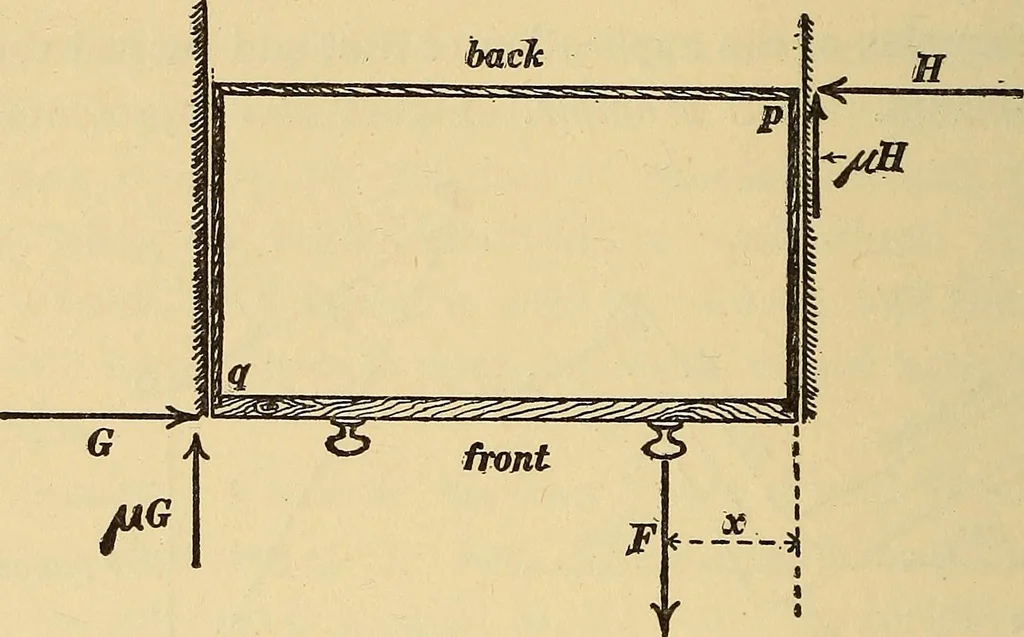

Fig. 20b representing the known value and directionof the force F, and from the end of this line draw the line QRrepresenting the known force W in Fig. 20a. The line RP thenrepresents in magnitude and direction the force which acts uponthe lever at 0. Second example. A table drawer 36 inches in… … Fig. 21. smallest value of x for which the drawer can be pulled out bythe force F, the coefficient of friction* between drawer and guidesbeing 0.7. The guides exert forces upon the drawer at the two corners pand q, and when the drawer is on the point of sliding the forceexerted on the drawer at p…
