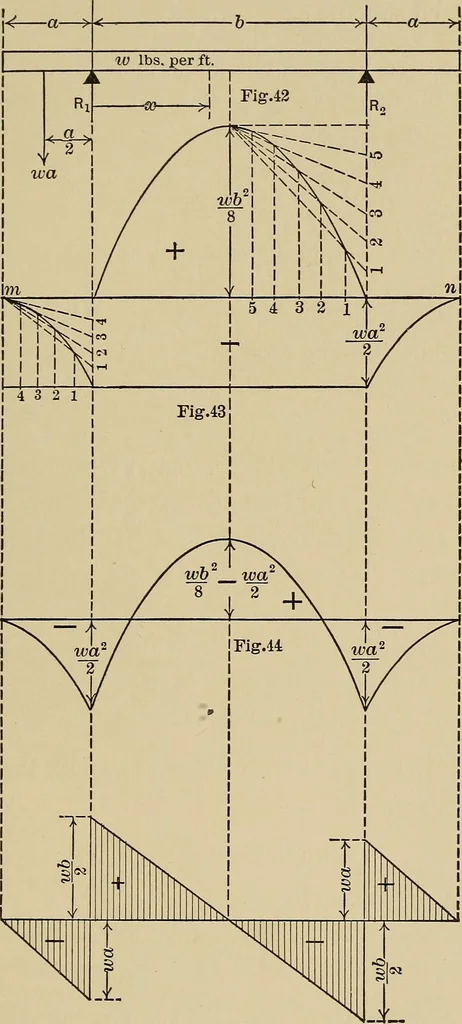

garding the load on the central span of the beam,the reactions at the supports are each wa. Then the bendingmoment for any section between the supports and distant x fromthe left support is M = wax — wai- -\- xj = ? showing the bending moment due to the overhanging loads tobe constant between the… … Fig. 45- 44 THE ELEMENTS OF MECHANICS OF MATERIALS The uniformly loaded central span of length h occasions a whreaction at each support of —? and as the tendency is to bend 2 the beam concave upward the bending moments are positive.The bending moment at any section between the supports anddistant x…
