The elements of the mechanics of materials and of power transmission (1911)
King, William Richard, 1852- · New York, J. Wiley & sons; [etc., etc.] · leaf 74

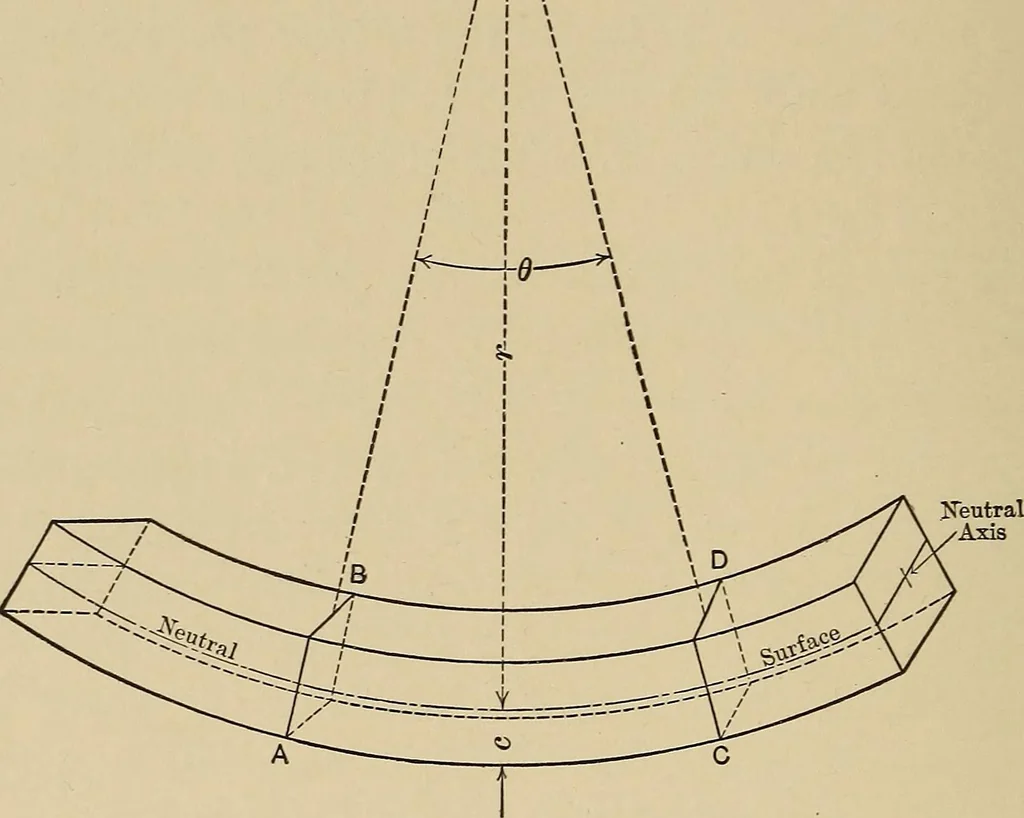

equal to L. 64 THE ELEMENTS OF MECHANICS OF MATERIALS 32. Neutral Axis. — When a beam, Fig. 62, is subjected to abending moment its axis is deflected from its original straightposition into one of curvature, known as the elastic curve. Thefibers in the horizontal layers on the convex side are in… … Fig. 62. in which this surface intersects the plane of a section of thebeam is the neutral axis of the section. The neutral axis inva-riably passes through the center of gravity of a section whosematerial has its modulus of elasticity the same in tension as incompression. Consider the portion of…
Mechanics, Applied · Power transmission
