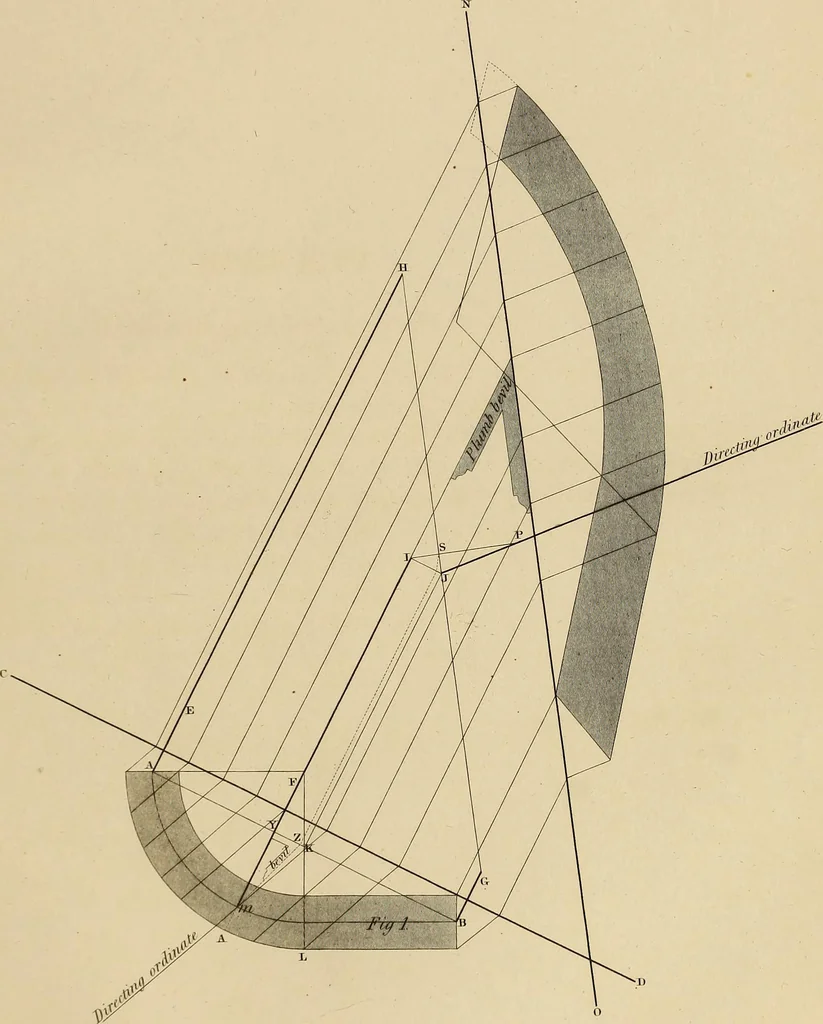

also draw IP at right angles with the line H G, and with the distance K M,from the point Jasa centre, bisect the line IP at P. Join J P, which gives the directingordinate for the face mould—transfer the ordinates from the plan, and set them from thechord O N, and through the points trace the face… … Plate 62.
Carpentry
