Sullivan, Christine [Gordon]. [from old catalog] · New York, Cincinnati [etc.] American book company · leaf 31

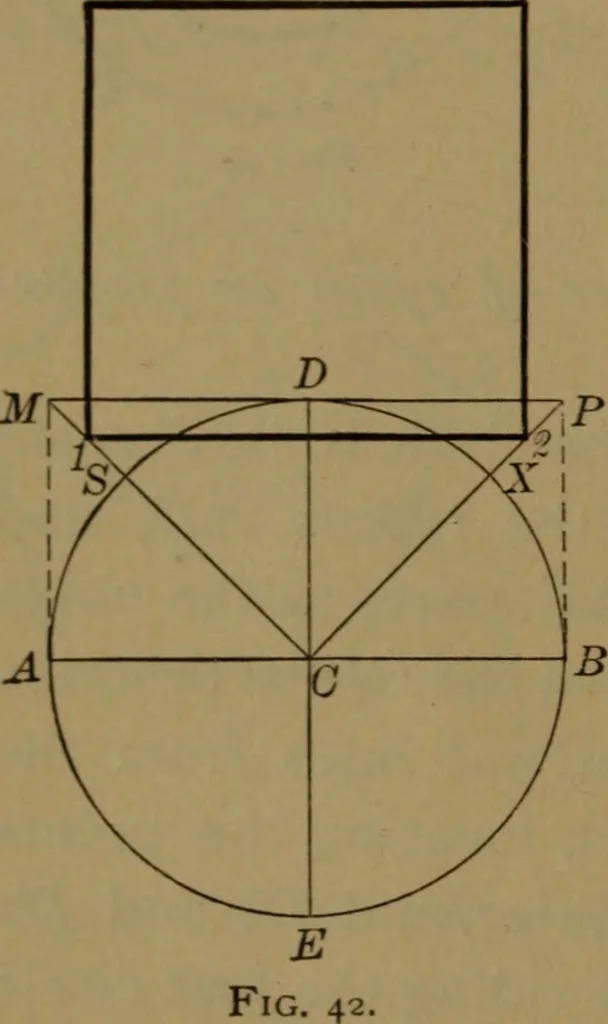

Note. — There is no exact method of working this problem. 26 ELEMENTS OE MECHANICAL DRA WING. LESSON XL GEOMETRIC PROBLEMS. — Concluded. … Problem 6. — To construct a squai-e luhichshall be equal to a given circle. Describe the circle, and draw the diametersat right angles to each other. Through thepoint D (Fig. 42) draw the line MDP tan-gent, and equal to the diameter AB. Drawthe lines CJ/and 67^, cutting the circumfer-ence in S and…
Mechanical drawing
