Elements of mechanical drawing (1893)

Sullivan, Christine [Gordon]. [from old catalog] · New York, Cincinnati [etc.] American book company · leaf 48

An illustration from Elements of mechanical drawing, 1893, leaf 48

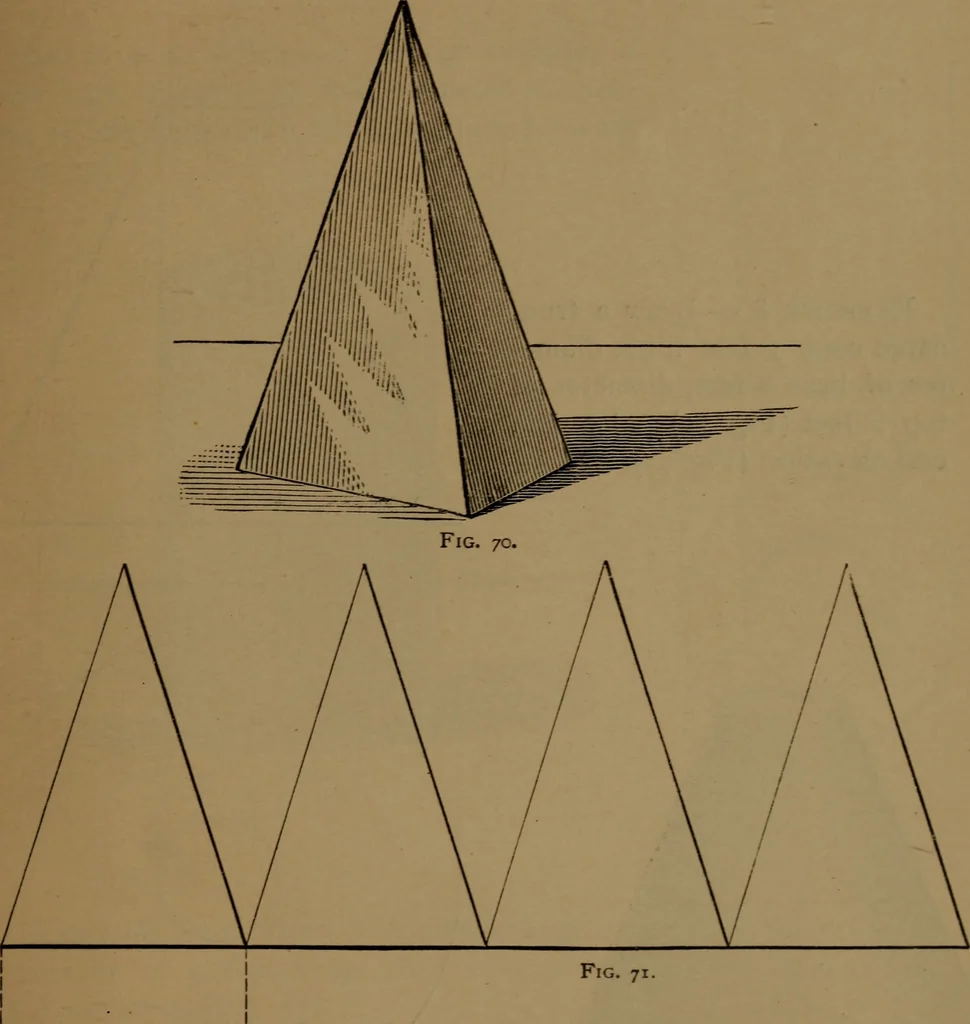

Fig. 69. Exercise 6. — Draw a box 10 feet long, 5 feet high, and 4 feetwide (Fig. 68) ; also plan and elevations (Fig. 69). GEOMETRIC SOLIDS,—PLANS AND ELEVATIONS, 43 … Exercise 7. — Draw a pyramid 8 feet high,having a base 5 feet square (Fig. 70) ; also planand elevations (Fig. 71). 44 ELEMENTS OF MECHANICAL DRA WING. Exercise 8. — Draw a trun-cated cone 7 feet high, diame-ter of base 8 feet, diameter oftop 2 feet (Fig. 72) ; also planand elevation (Fig. 73).

Mechanical drawing
