Elements of mechanical drawing (1893)
Sullivan, Christine [Gordon]. [from old catalog] · New York, Cincinnati [etc.] American book company · leaf 50

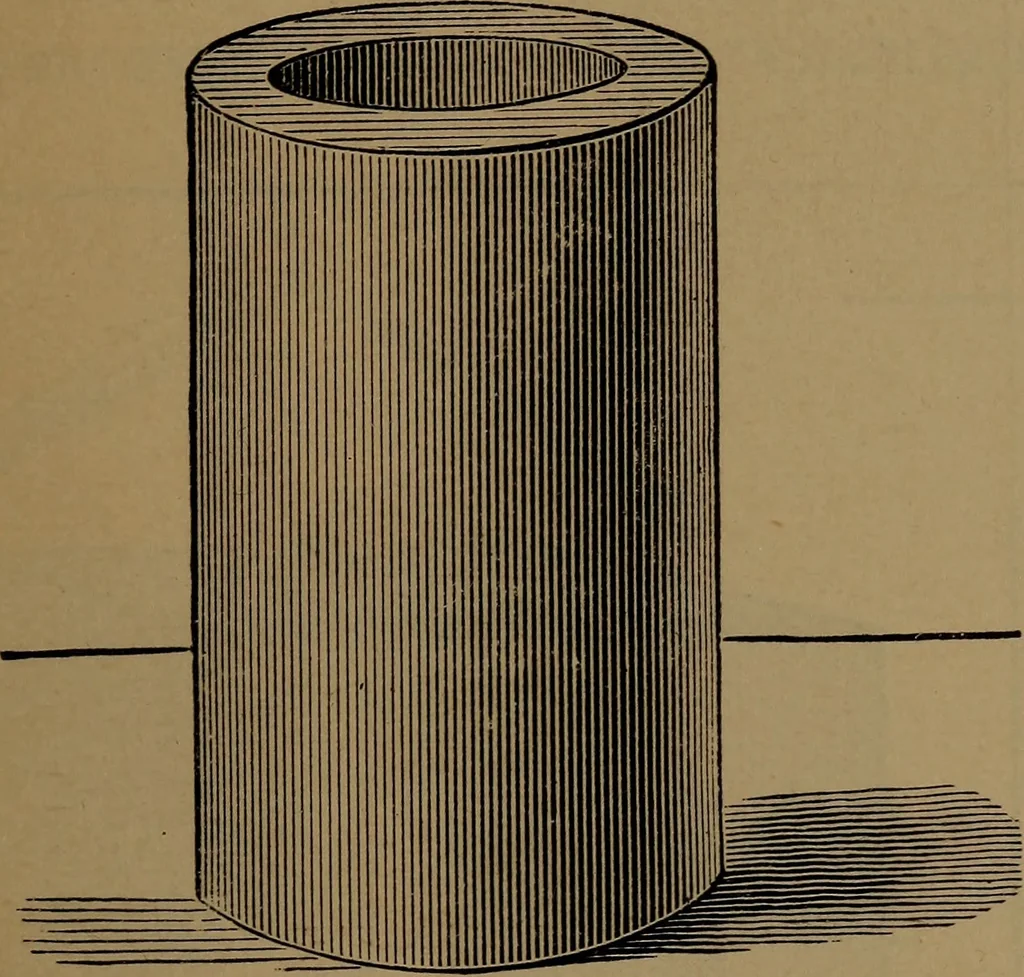

Fig. 72. Fig. 73. GEOMETRIC SOLIDS.—PLANS AND ELEVATIONS, 45 Exercise 9. — Draw a hollow cylinder 7feet high, diameter 4^ feet, diameter of open-ing 2\ feet (Fig. 74) ; also plan and elevation(Fig. 75).Mechanical drawing
