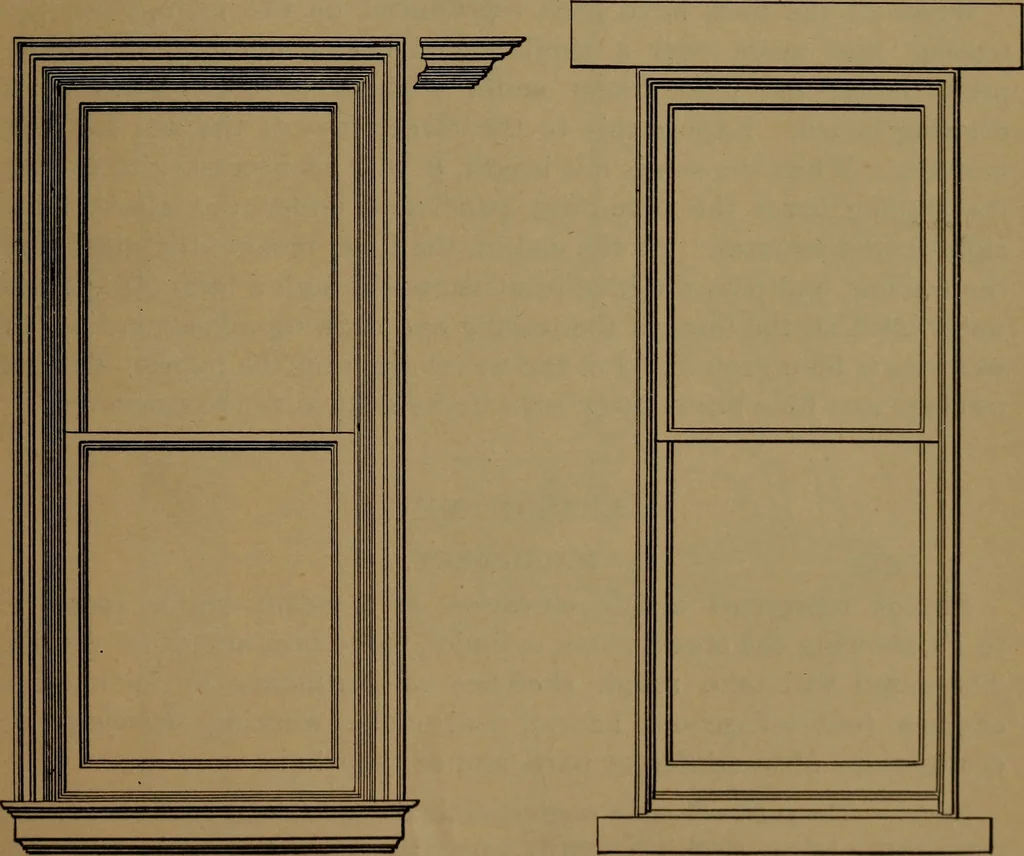

ARCHITECTURE. 57 LESSON XXIII ARCHITECTURE. — Concluded, Exercise 2. — Draw detail of window, interior and exterior ; scale,-iV to i (Fig. 94). Note. — The pupil will take measurements of a door, and make working draw-ings of the same (scale, i to i). … Interior* Exterior Fig. 94. SS ELEMENTS OF MECHANICAL DRAWING, LESSON XXIV.TRACING AND BLUE PRINTING. After the pupil has made a working drawing in lead pencil, hewill * ink in the same with compasses and ruling pen, and with softrubber or bread erase all traces of pencil and finger marks. He…
