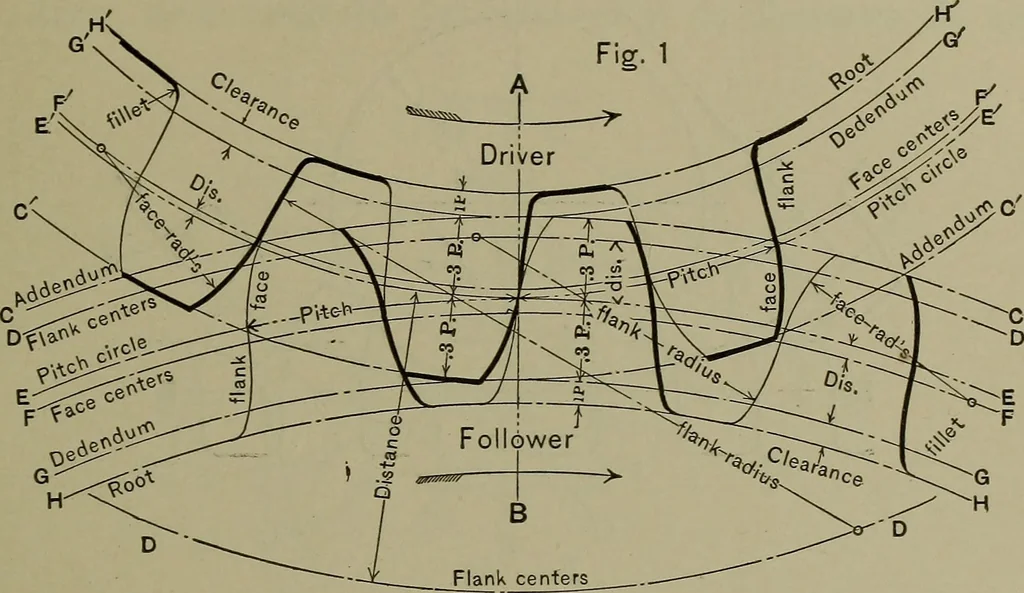

in a similar manner and the flankcurve of the teeth drawn as shown. Approximate Involute.—Fig. 2, Plate No. 11. The table forinvolute teeth is applied similarly to that for cycloidal teeth, withthe exception that all centers are on the base circle. 161. Rack and Pinion. Exact, Non-interchangeable… … 1. CYCLOIDAL SYSTEM. (By Grants Cycloidal Odontography EXAMPLES OF SPUR GEARS.
