The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 343

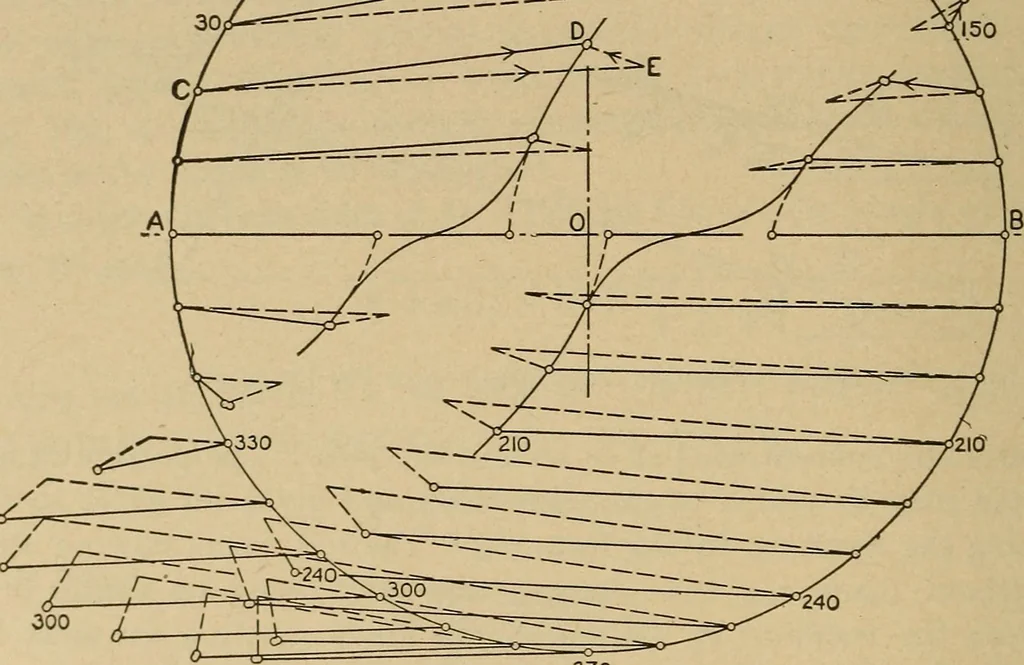

the rod. Of the total weight of reciprocating parts,a good average assumption gives the piston slide 0.6 and the connect-ing rod 0.4: then one-half of the rod equals one-third of the slide, andout of a total of 36 lb. the half rod will have a centrifugal force of 9 lb.per sq. in. of piston. (6)… … 270 Fig. 182. — Diagram of Crank-pin Pressures. tion, the line CE is the force aS along the rod (found from the values ofPd in Fig. 172) and ED is the centrifugal force Pc, so that CD is thepressure Pc of the connecting rod upon the crank pin. It will be notedthat some of the D points are double:…
