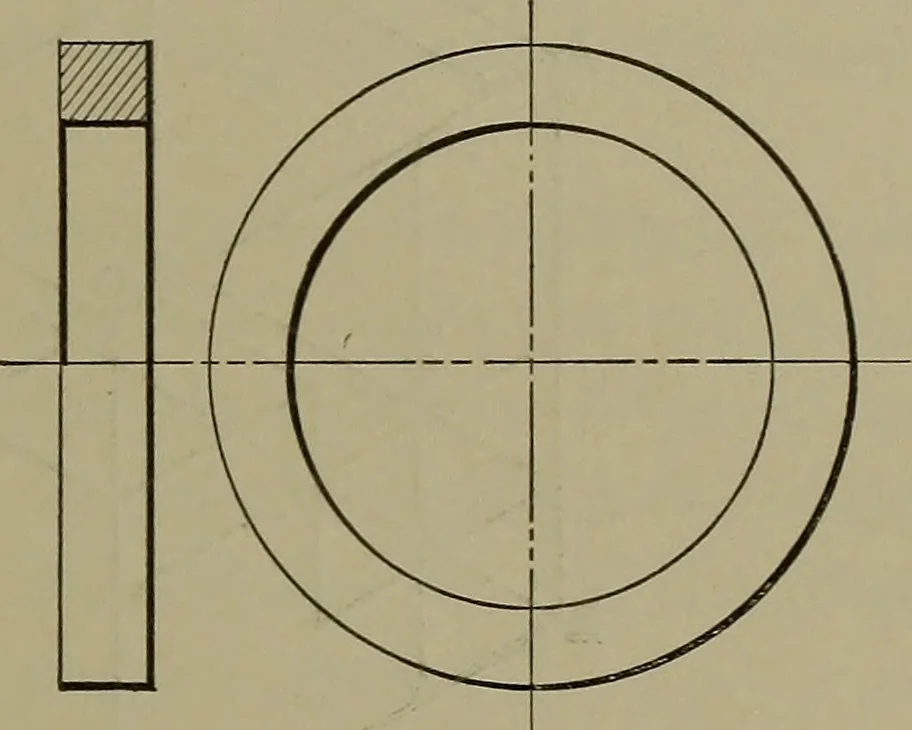

Fig. 9 c „- Fig. 10 Lines of Uniform Weight. Shade Lined* A Mechanical Drawing of a Ring. surfaces from which the light is excluded—a process which issometimes called back-lining. (See Figs. 7, 8, 9, and 10.) It is obvious that the right-hand and bottom lines, for draw-ings representing solid…
