A hand book of general instruction for mechanics, containing useful rules and memoranda for practical men (1907)
Smith, Franklin Elijah, 1872- · New York, D. Van Nostrand company · leaf 235

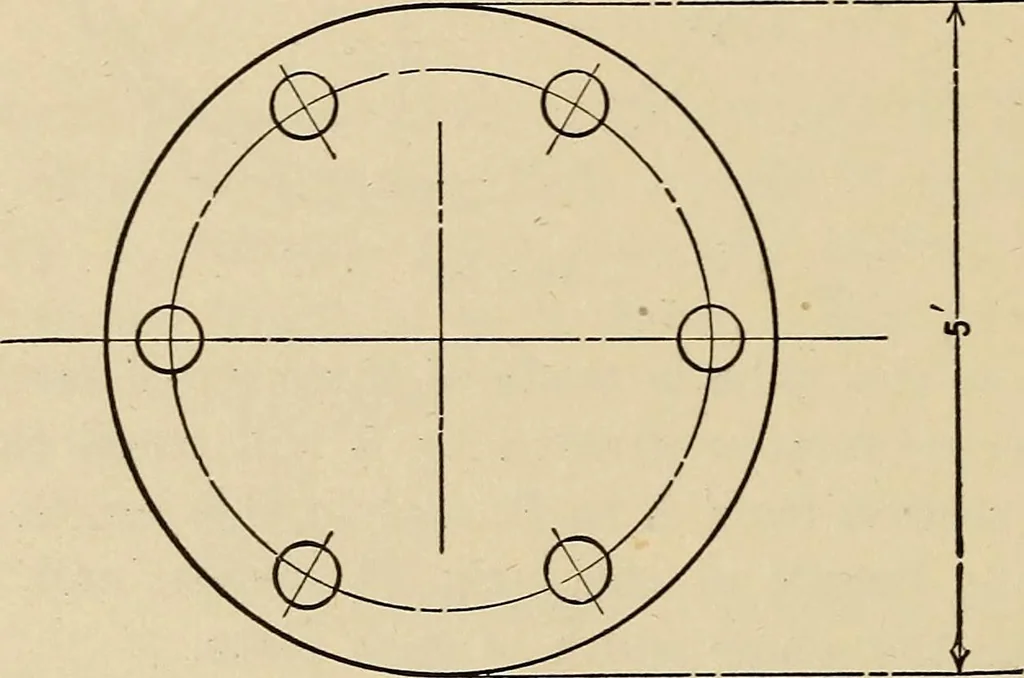

Fig. 35 222 A HAND BOOK FOR MECHANICS 5J = 5.255.25 X 12 X 3.1416 = 197.920 circumference in inches of strap.Then 197.920 + 3 = 200.920 inches, or 16.743 feet, Example. If a circular plate, 5 feet in diameter, hasto have some holes bored in it, 2\ inches from the edgeof the plate to the center of… … Fig. 36 The circle on which the holes are bored is 2\ inchesinside the outer diameter, of plate, and therefore fiveinches less in diameter. Diameter of plates = 5 feet =60 inches Then 60 — 5 = 55 inches. Arts.
Mechanics · Arithmetic · Measurement
