Jamison, Alpha Pierce. [from old catalog] · New York, J. Wiley & sons; · leaf 55

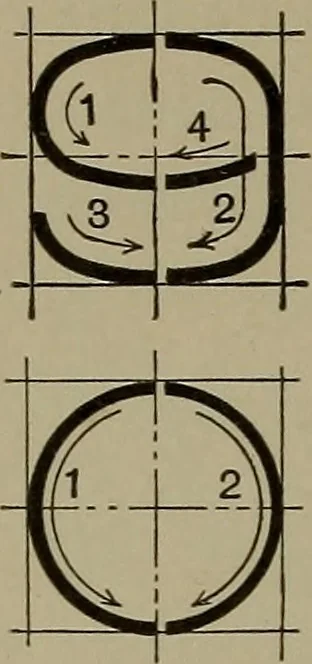

the arcs 2 and 3 are* elliptical. Proportions, the height equals the width; charac-teristics, the lower portion of the figure occupies overone-half of the square and is an ellipse; the upperpart is parallel to the top line of the ellipse. Proportions, the height equals the width; charac-teristic,… … 36 MECHANICAL DRAWING. Proportions, the height equals the width; charac-teristic, the same as the figure 6 inverted. Proportions, the height equals the width; charac-teristic, it is a complete circle, the same as the letter O. As in lettering, there is the vertical and inclined type of figures,and…
