Leeds, Charles Carley, 1870- [from old catalog] · New York, D. Van Nostrand company · leaf 14

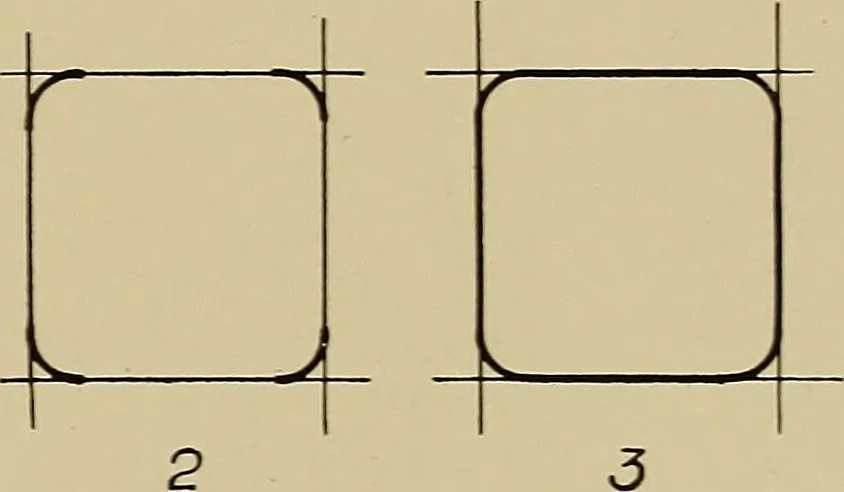

- to the attractiveness of a drawing,and they should never be overlooked. … Fig. 13. The student should observe that in the illustration, Fig. 13, thesquare is first laid out in faint construction lines, then the comers arerounded, and, finally, the sides are lined in. The roimded comer lines should be made as hea\y as it is desiredto make the rest of the outline, so that…
Mechanical drawing
