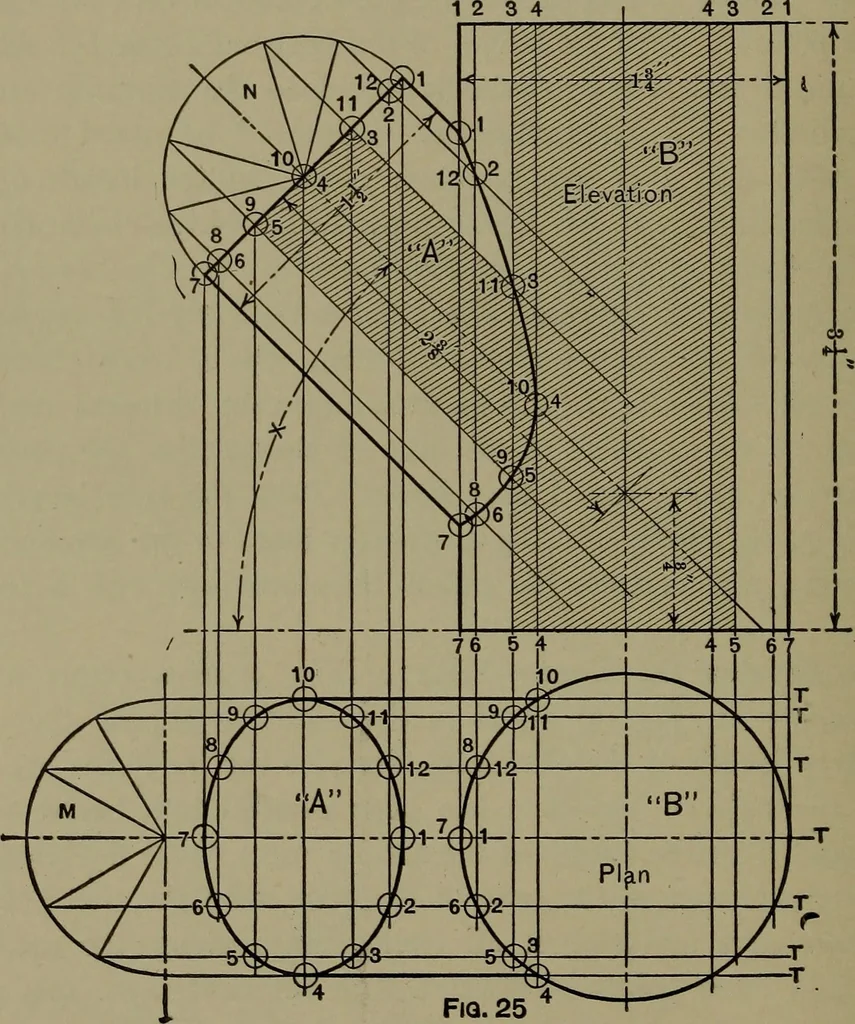

CHANICAL DRAWING. taken from either drawing i or 4 by horizontally projectingeach point of intersection onto the slant height—a short methodof revolving parallel to V— as in Problem 5, and transferred tothe development as shown. 82. Problem 8. To Find the Intersection of Two Right Cyl-inders of… … Analysis.—Intersect the two cylinders with a system of planes,T, T, T} etc., which cut elements from both cylinders (as indi-cated by the ruled section) and find the intersection of the ele- PROJECTION. 71 ments of each cylinder cut by the same plane; these points,when joined by a curved line,…
