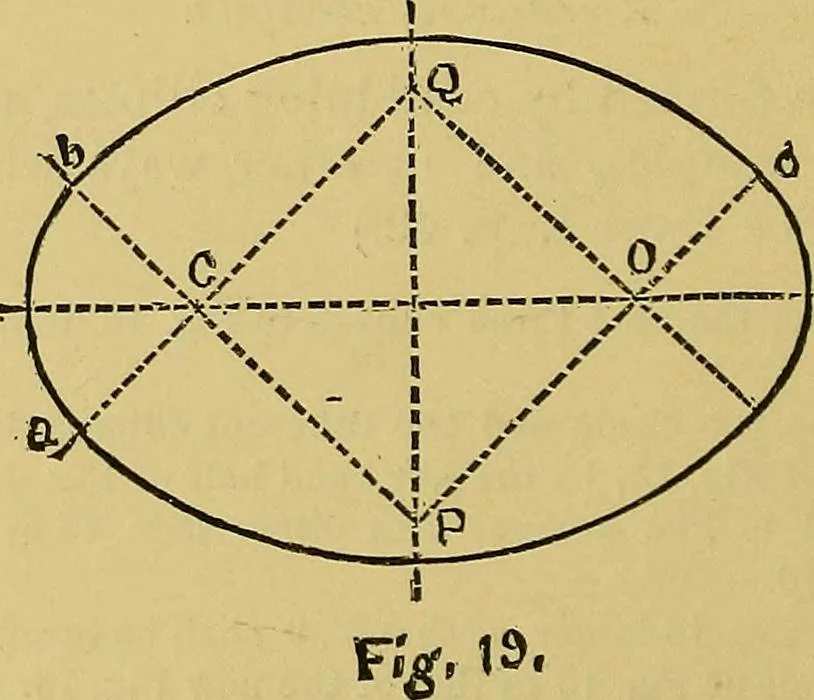

by some other simple surface. Thus, acone is formed by revolving a right-angled triangle abouteither of the sides of the right angle; and the curves whicharise by cutting its curved surface by any plane are naturalcurves. 69. An artificial curve, on the contrary, is built up of sepa-rate arcs, of… … 71. The artificial ellipse may be composed in various waysof four or more circular arcs, one way being shown in Fig. 19, CURViLmEAE GEOMETRIC BEAUTY. OVALS. Ill where C, O, P, Q, are the centres of the two pairs of arcs, asab^ and ho, there used. But the resulting figures are all moreor less…
