Raymond, William Galt, 1859-1926, Raymond, William Galt, 1859-1926. cre · New York, J. Wiley & sons, inc · leaf 110

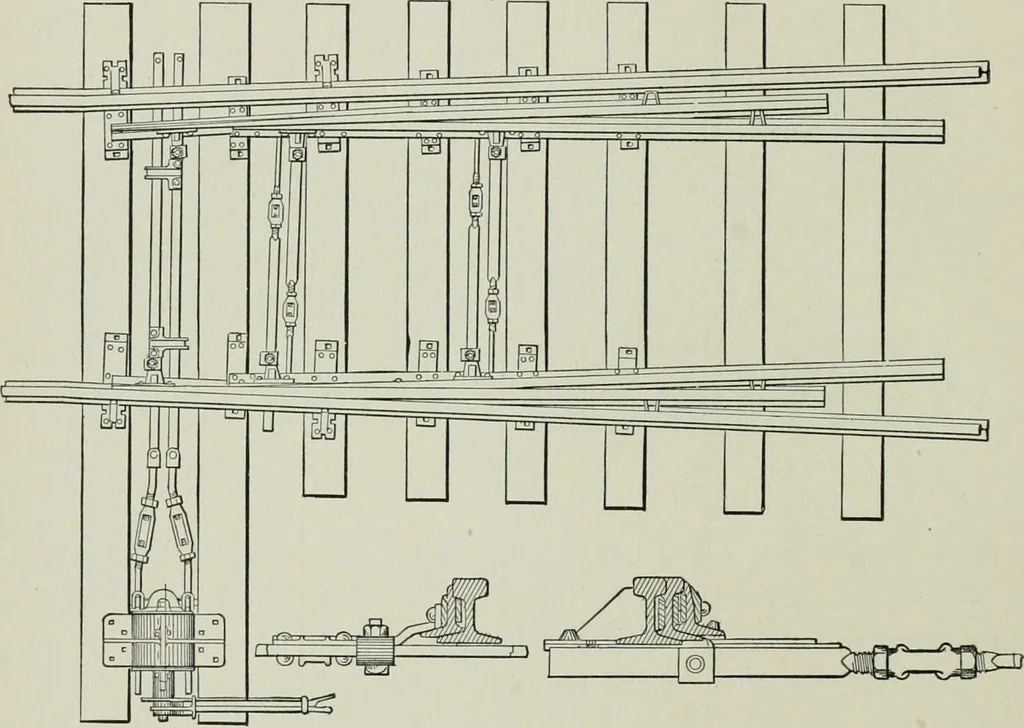

Fig. 40 Spht switches cannot be made three throw from one point.They are arranged by using two complete switches, one beginningbeyond the heel of the other, called a tandem arrangement, or as … Fig. 41 shown in Fig. 41, in which one set of points is advanced about2 feet beyond the other. In either case both switches may beoperated by suitable connecting-rods from one stand. Crossings and Slips. — When one track crosses another, thearrangement of rails is known as a crossing, and four…
Railroad engineering
