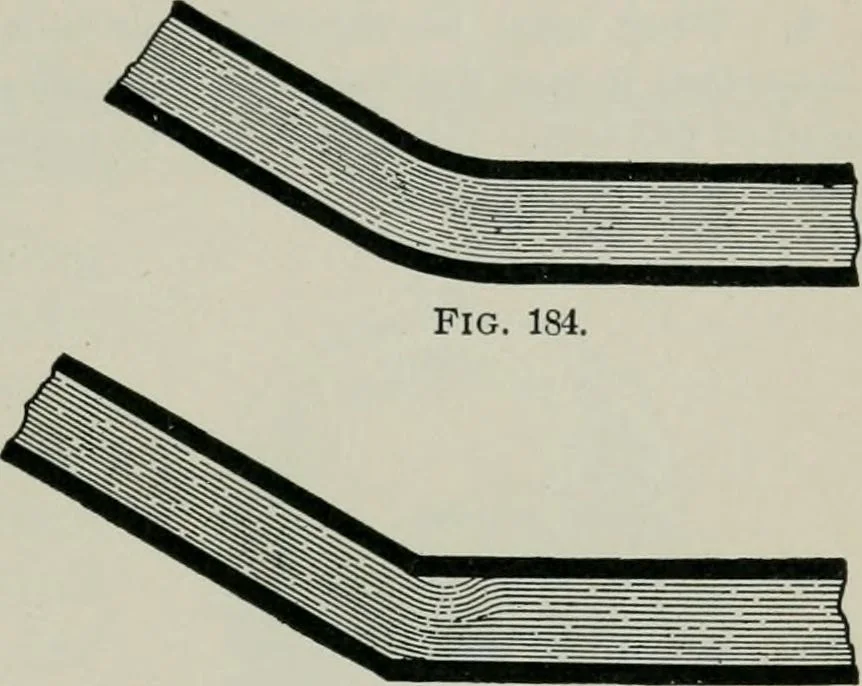

YDROMECHANICS. 401 necessary, they should be as large as the circumstances willpermit, so as to change the direction gradually. Suddenchanges in direction destroy the velocity very rapidly, and,consequently, reduce the discharge. A reduction or in-crease in the size of the pipe, owing to screwing… … Fig. 185. A bend at right angles, as shown in Fig. 186, is verydestructive to the velocity. A rounded elbow, as shown inFig. 187, should be used, and the radius should be made aslarge as possible.
