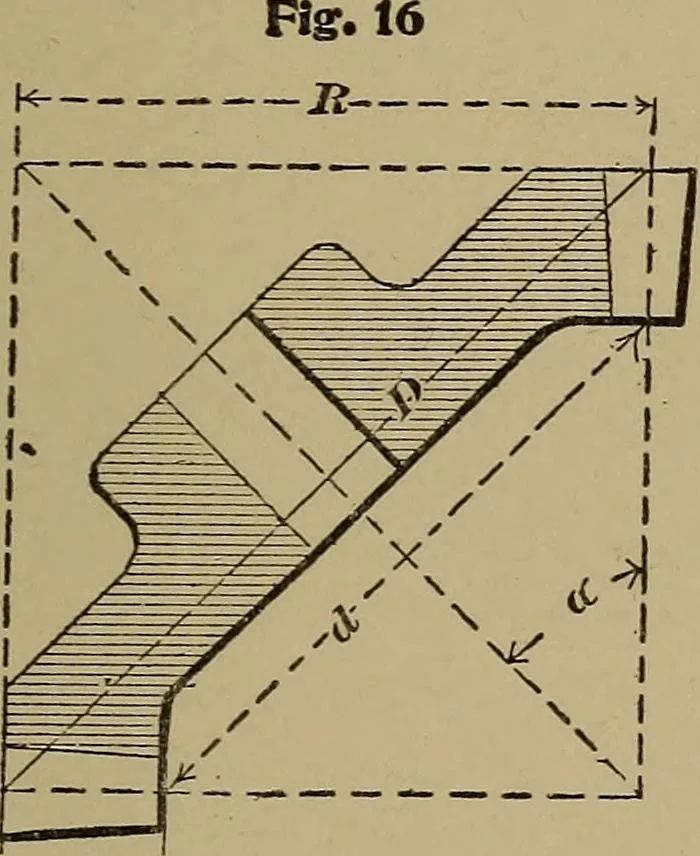

el gear in inches.P = Circular pitch at the largediameter. n= Actual number of teeth.iV=Formative number of teethwhich can be calculated bymultiplying the secant of anglea (See Fig. 16) by the actualnumber of teeth thus:N = n X secant a. The formative number of teeth is also the same numberof teeth… … To illustrate the use of the formula, Mr. Lewis gives the Find the working strength of a pair of cast iron miter gearsof 50 teeth, 2 inch pitch, 5 inch face at 120 revolutions per minute.Radial flank system. In this case D = 31.8 inches, d = 24.8 inches. The anglea is 45 degrees, therefore secant a…
