International Correspondence Schools · Scranton, Pa. : The Colliery engineer co. · leaf 606

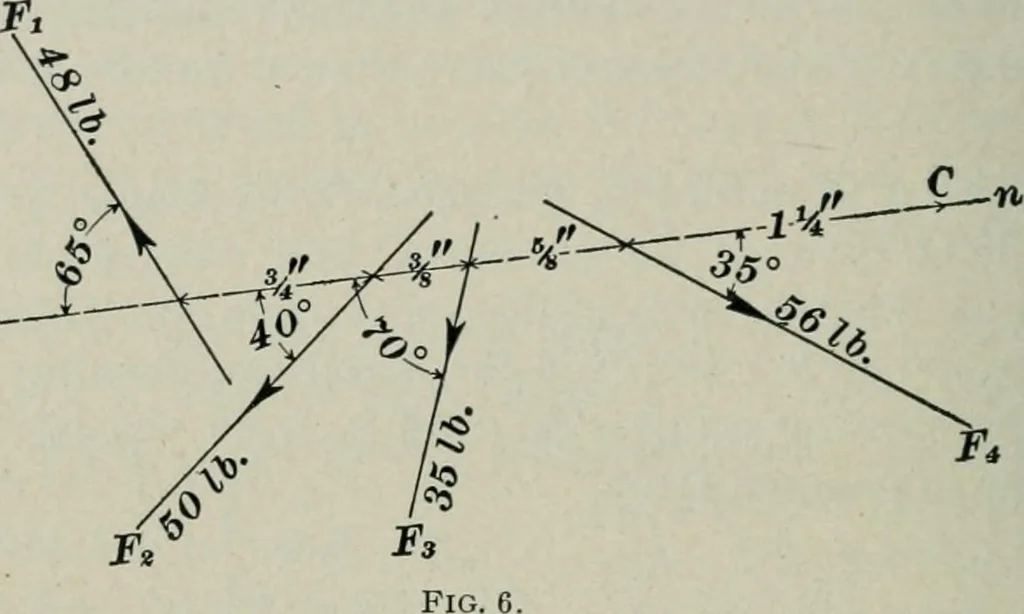

Fig. 5. 504 STRENGTH OF MATERIALS. (575) Define the following: Simple beam; cantilever;restrained beam; continuous beam. in— … (576) Find the resultant moment of the forces of Fig.6 about the point C. (577) A rectangular white pine beam 22 feet long, carriesa load of 4 tons, 8 feet from one end. Assuming thedepth of the beam to be double the width, what should beits dimensions to safely support the load ? Ans. Depth = 17^…
Railroad engineering
