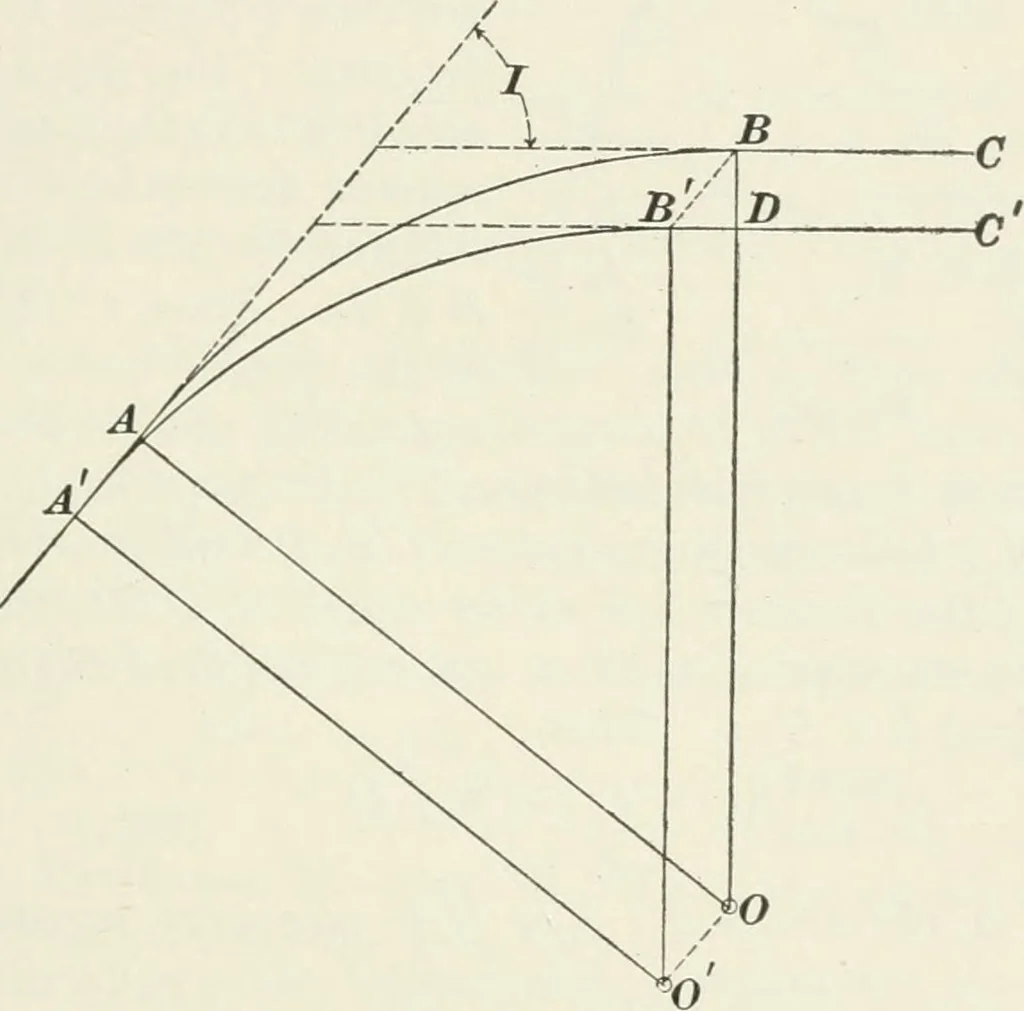

shall terminate in a tangent B Cparallel to B C and at a fixed distance from it. The angle B B D ^ /, the angle of intersection of thetangents. We have sin /) /) D — -rr-n, whence B B = —.—r-B B sm / B B ■= O O =^ A A\ the required distance to move theP. C. of the curve either backwards or… … Fig. 361. tangent. Let the intersection angle be 68° and the distance 40B D = 40 feet. Sin 68° = .92718, whence A A ^ _Z1_ :,^ .!);>? 18 43.14 feet. That is, the P. C. of the required curve must be movedbackwards 43.14 feet from the P. C. of the given curve. 1423. Problem II.—To change the point…
