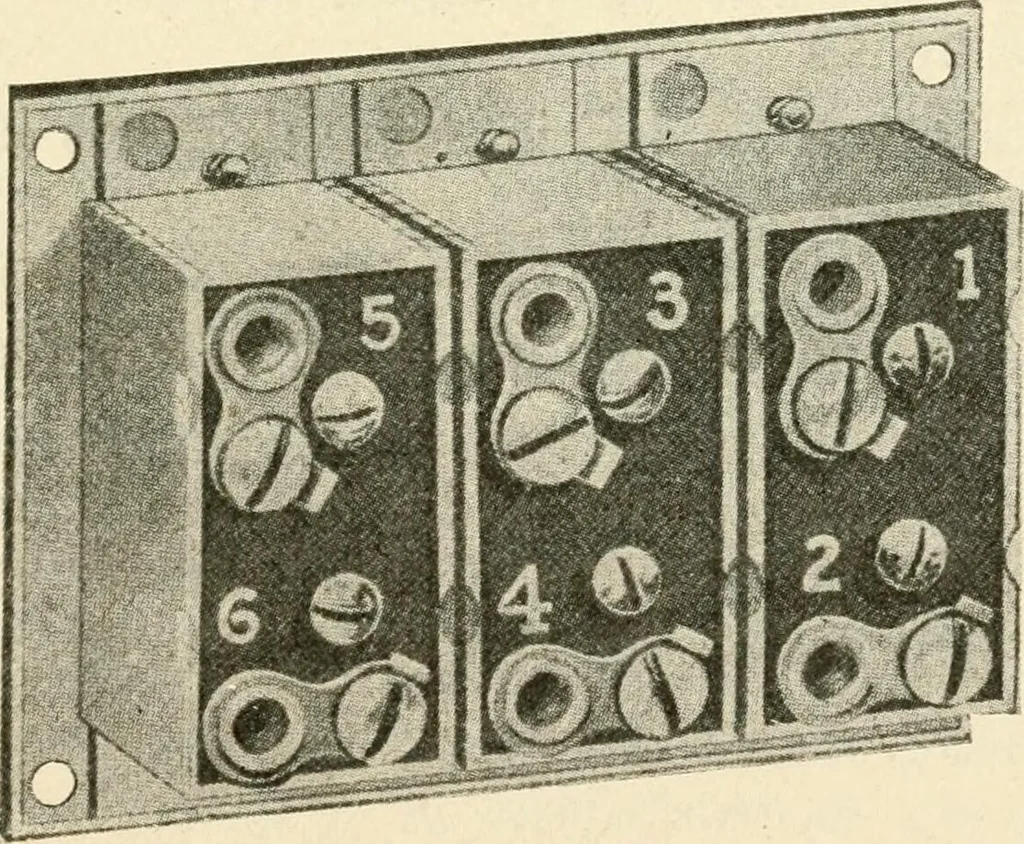

Fig. 3—Front View of Switch. Wire leading from screw No. 4 connects to thetail lamp. Wires leading from screw No. 5 connect toscrew No. 3 on the switch and to the battery. Wires leading from screw No. 6 connect to theleft side lamp and to the right side lamp. By referring to Fig. 4 and to the… … Fig. 4—Rear View of Switch. 170 Autocrajt. Lighting Combinations—Using Three-Gang Auto Switch. For such a lighting system controlled by theselective system of push button switch, a three-gang switch as shown in Figs. 3 and 4 is recom-mended. With this system six different combinations oflighting…
