Engelman's autocraft; being an instructive study of the automobile; its care and management; how to drive; locating troubles and repairing them; with chapters exploiting some of the latest devices used in automobile construction (1914)
Engelman, Roy Albert, b. 1889 · Cincinnati, O., The American chauffeur publishing co. · leaf 201

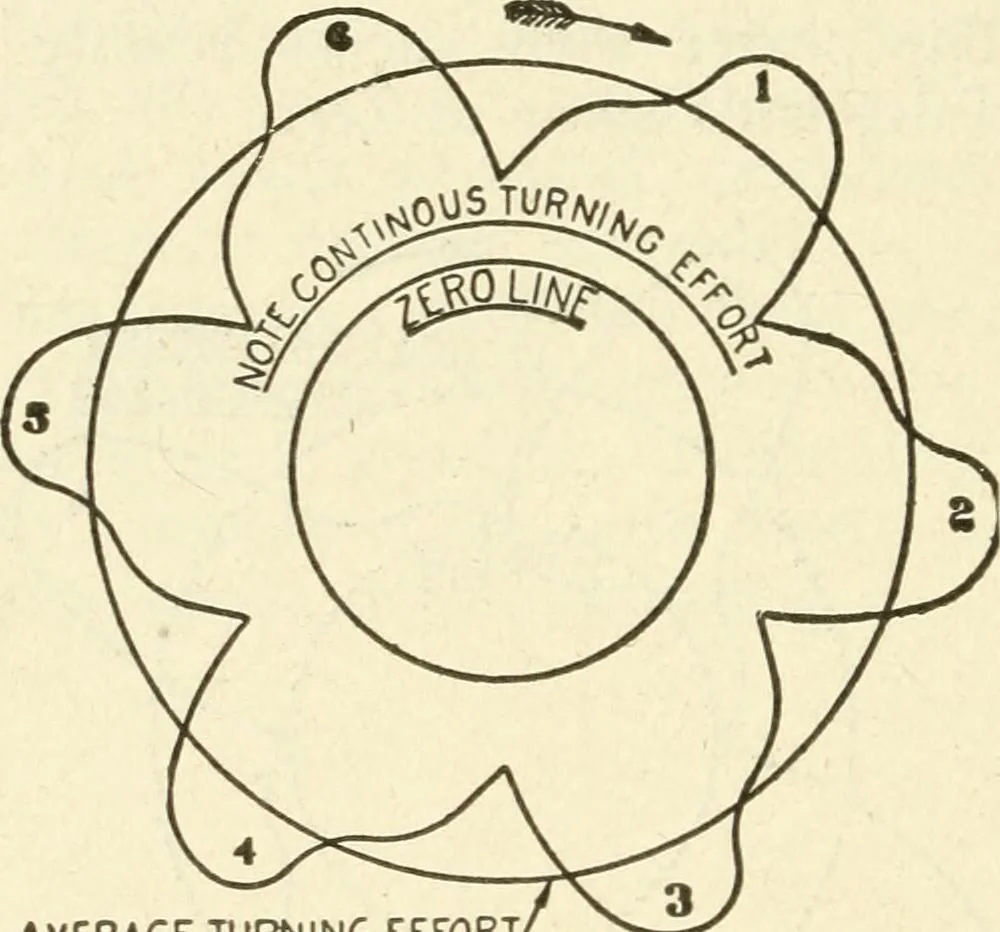

teduntil all four cylinders have fired. There are two prominent features of this dia-gram to bear in mind. (i8y) 190 Autocrajt. There is a point after each power impulse of afour-cylinder motor, in which power is at Zero—nothing. At Zero, the idle mechanism is suddenly drivento renewed action by a… … AVERAGE TURNING EFFORT/ C STROKES IN 2 REVOLUTIONS Chart of Six. The curve, as did the one on the precedingpage, begins at the intersection where No. 1cylinders charge fires. Upward rises the force to 1 and then descendsuntil the second cylinder fires. The power risesagain and continues the cycle.…
