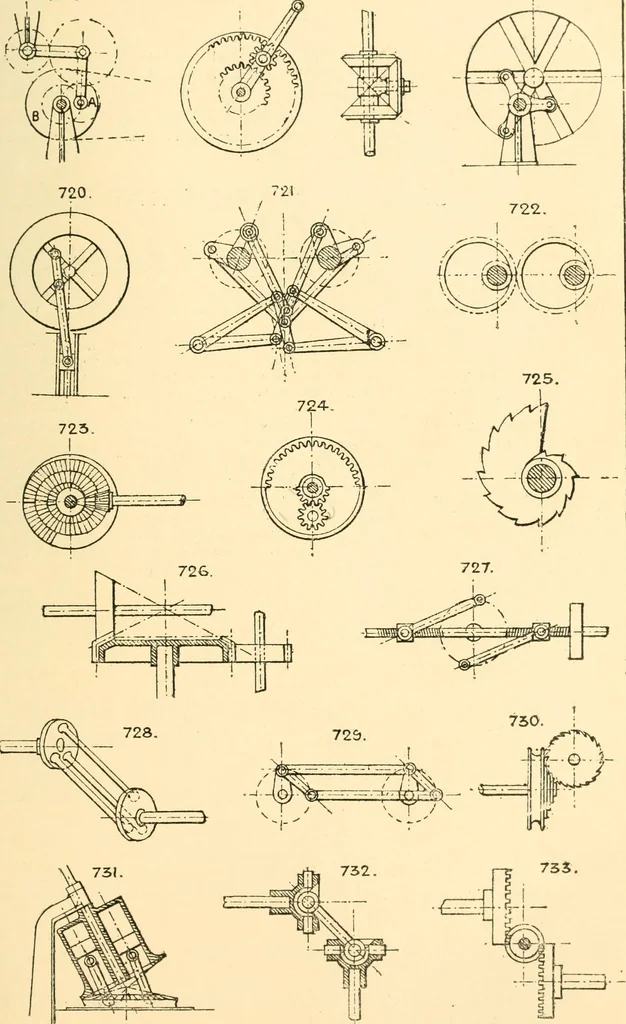

ball-jointed crank motion. 729. Crank gearing between two sliafts running in the same direction. See No. 187. The cranks should be similar to Nos. 174 or 175. 730. Snail worm gear. 731. Diagonal engine or pump, with bevil gear revolving motion and three or more cylinders. 732. Angle coupling on Dr.… … g6 THE ENGINEERS SKETCH-BOOK, 734. Ball wheel, with limited angular traverse gearing into one or two pinions. 735. Scroll and rack. 736. Variable speed gear, from an elliptical or other irregular-shaped driving wheel, combined vvitli a tied idle intermediate wheel. 737. Spring friction grip wheels.…
