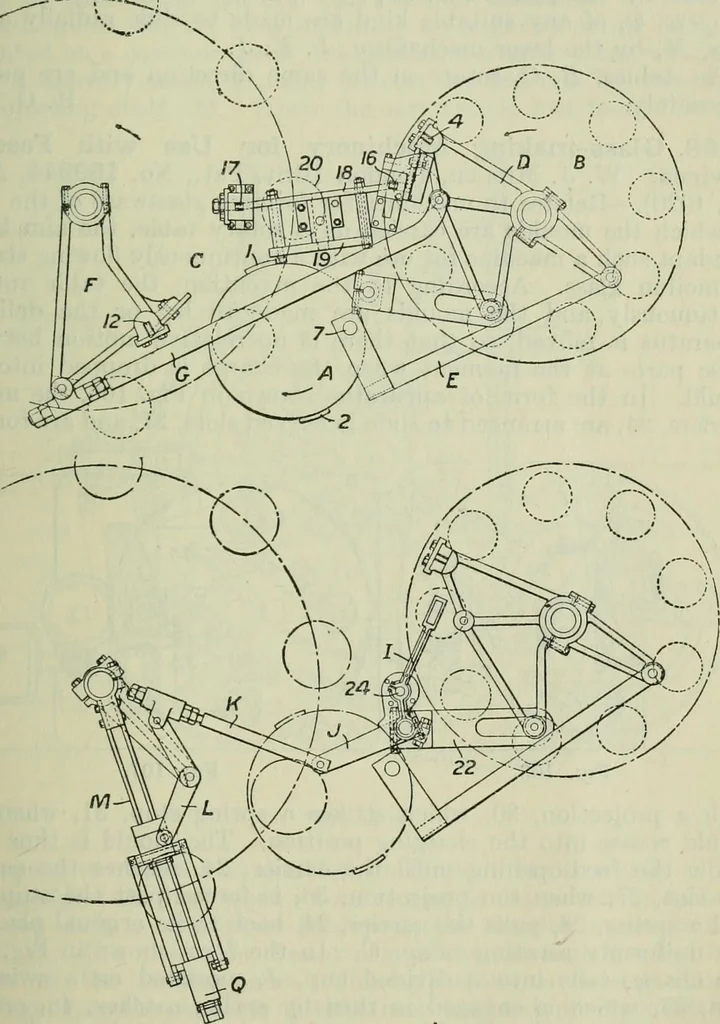

aft, E, are connected by spur gear, but are also independentlydriven. by worms, 13, 14, on the main driving-shaft, 12. Theparison, /, is fired from the mould, F, by a tappet, 26, which israised by a bell-crank lever, 25. After the ware has been blown, theneck ring is lifted or unscrewed by spring… … Fig. 105.Relates to table-rotating-transfer, and delivery mechanism in press-and-blow machines of the double rotating table type. Fig. 105 150 JOURNAL OF THE SOCIETY OF GLASS TECHNOLOGY. is a plan of the mechanism below the parison-mould table, B,and blow-mould table, C. Oscillating arms, F, D, are…
