The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 103

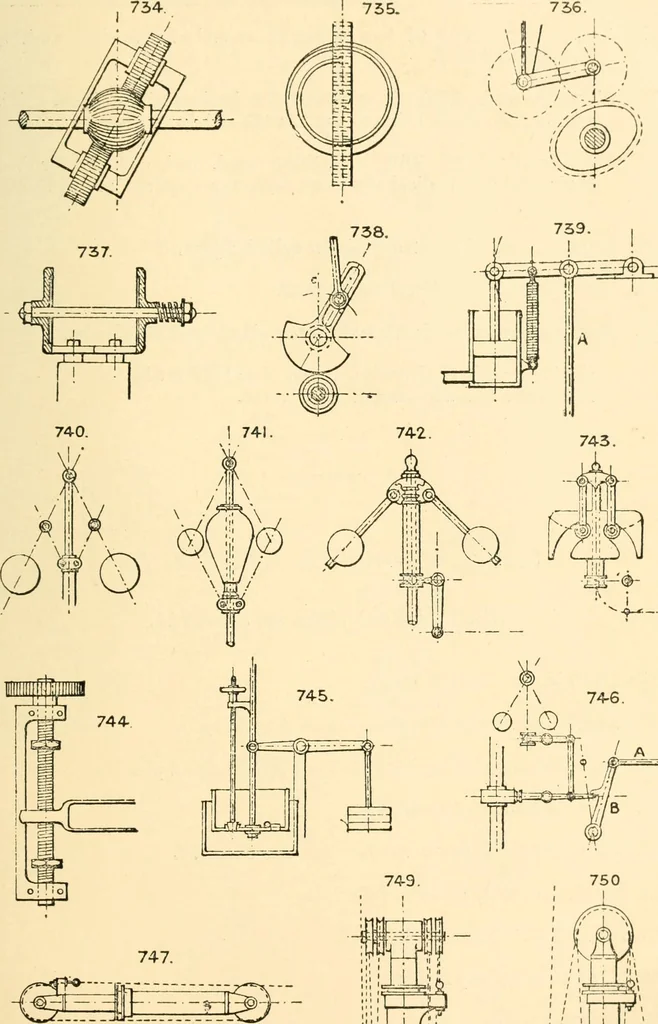

m end. Cylinder end. With 1 sheave .. 1 sheave .. it is geared 3 to 1.„ 2 „ ..2 „ .. „ 5tol. „ 3 „ ..3 „ .. „ 7tol;&c. 748. Is the same plan, but equally geared— Rjim end. Cylinder end. With 1 sheave .. Mo sheaves .. it is geared 2 to 1.„ 2 „ ..1 sheave .. „ 4 to 1. „ 3 „ .. 2 „ „ 6 to 1;… … 7^. J- f^-f t 98 THE ENGINEERS SKETCH-BOOK. 761. An arrangement of the sheaves suitable for vertical working,but geared 4 to 1. 752. Stevens and Majors patent for horizontal working. The angle of the chain helps to support the weight of the ram. 753. Modification of 752, sometimes used, and…
Mechanical movements
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
