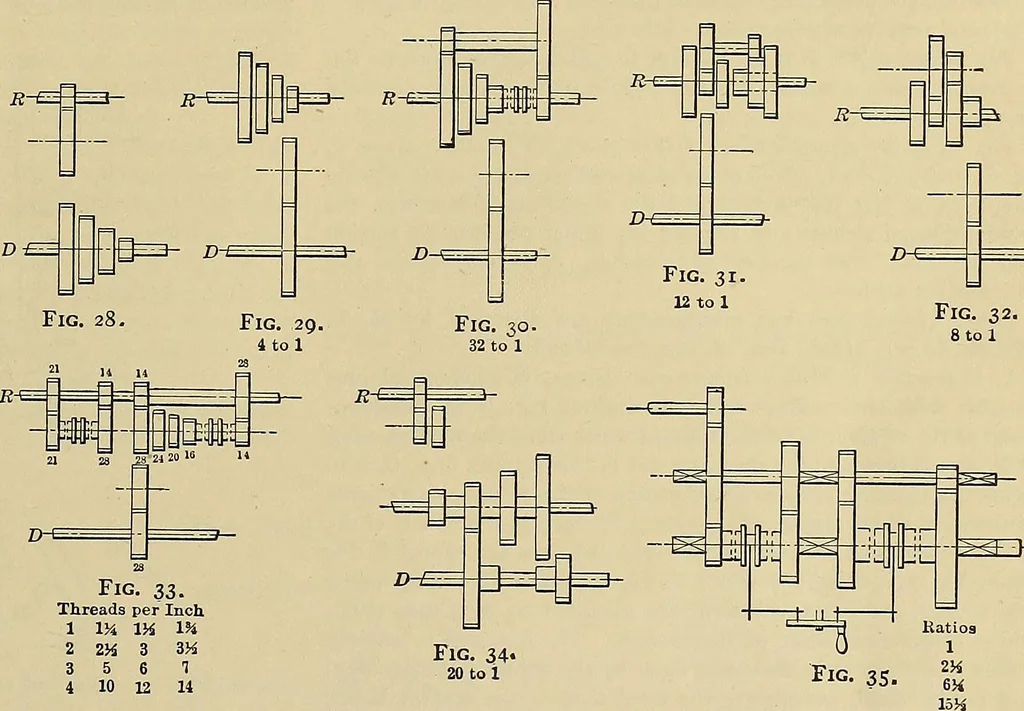

arrangementis the same as in Fig. 31. In Fig. 33 the number of teeth are given, the smallest pinionhaving 14 and the largest gear 28 teeth. The first two gears at theleft are keyed to shaft R, the other two running loose on a sleeve.The cone runs loose and is in one piece. Both clutches slide on… … Fig. 34 20 tol ■ r- / Uj / / / / ?d / / -_ -i 31 IW / / 1 ^ i _ — H L. Fast 4 6 8 10 12 14Speed Numbers Fig. 37.Speeds of Figs.36 and 39.
