The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 109

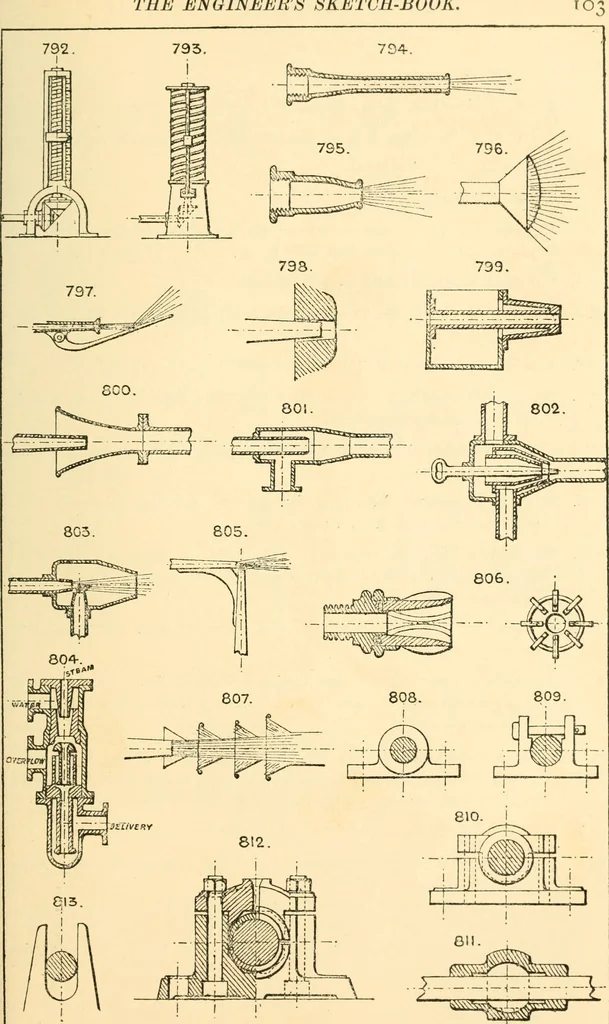

. See also Section 70. 808. Plain or solid pedestal. 809. Half bearing, sometimes used without a cotter. 810. Half bushed bearing, having a half brass on the lower side only. 811. Chambered long bearing. 812. The ordinary double brassed pedestal or plummer block; sometimes made with the cap and… … I04 THE ENGINEEBS SKETCH-BOOK. 814 & 815. End thrust bearings. 816. Sliding bearing, with vertical or horizontal traverse. 817. Double V bearing to accommodate different sizes of shafts. 818. Vertical shaft footstep. 819. Vertical pivot. 820. Horizontal pivot and set screw ; the screw should…
Mechanical movements
