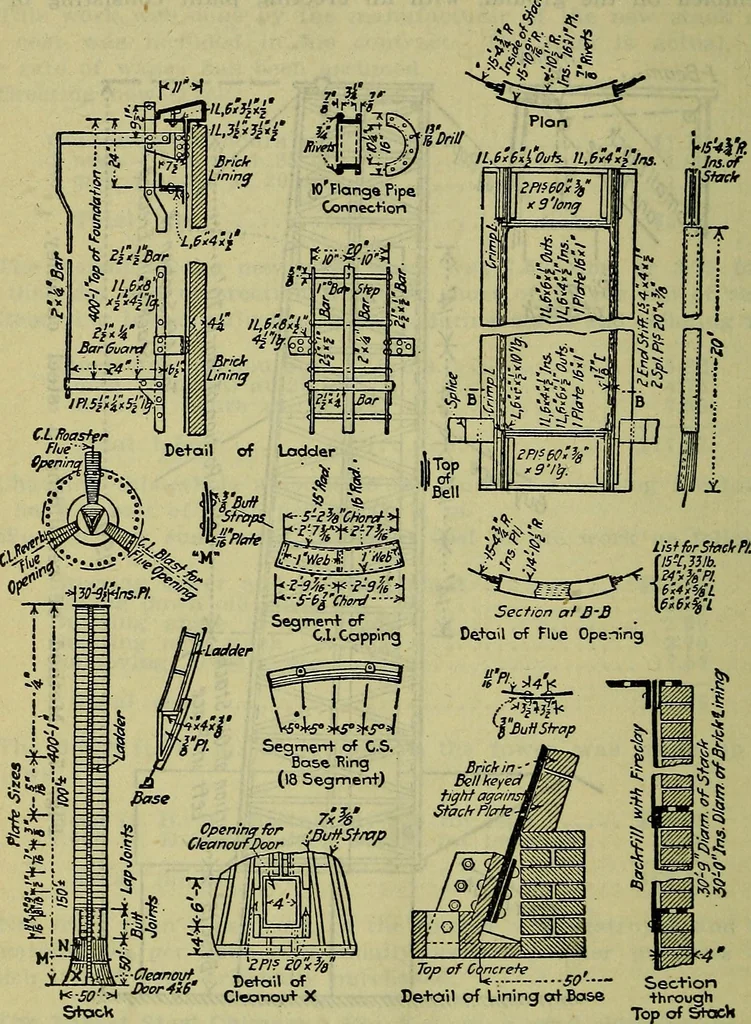

s were used. Thestack came to the ground in four 40-ft. sections. These werelaid in line, with the base of the bottom section as close as prac-ticable to the foundation, and riveted together on the ground. 242 MECHANICAL AND ELECTRICAL COST DATA After being riveted and lined out the stack was… … Fig. De+all of Lining ort Base Details of tallest steel chimney. through at a point 20 ft. from the top. These frames were wedged intothe shell tight enough to hold firmly and yet not bulge the platesor seams. The next step was to place the hoisting plant. A 72-ft. mastwas erected on top of the…
