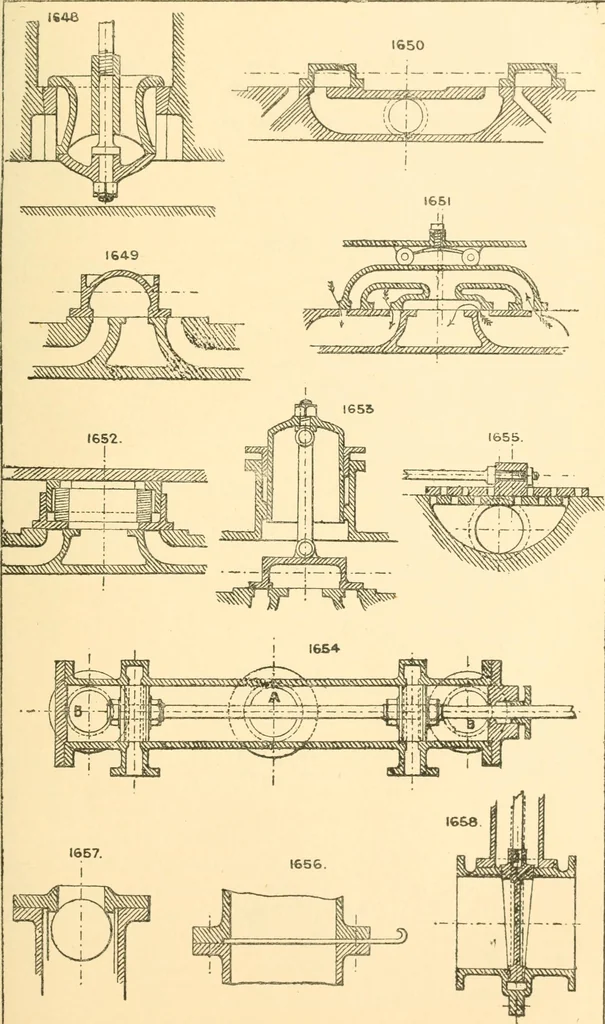

h circular packed trunk on back, ofarea sufficient to balance the face area of valve. 1653. Similar result obtained by a piston and link. 1654. Equilibrium piston valve employed in lieu of the slide valve.A steam pipe, B B exhaust. 1655. Gridiron slide valve. 1656, Common plate slide valve or… … 2o6 TEE ENGINEERS SKETCH-BOOK. 1659. Single face sluice valve, for sewage water, &o, 1660. Flap sluice valve. Tidal outlet valve. 1661. Diaphragm valve. 1662. Oscillating disc valve, for gas. 1663. Large 3 or 4-way plug cock. 1664. Finger valve, closed by a spring. 1665. Taper cone valve, for…
