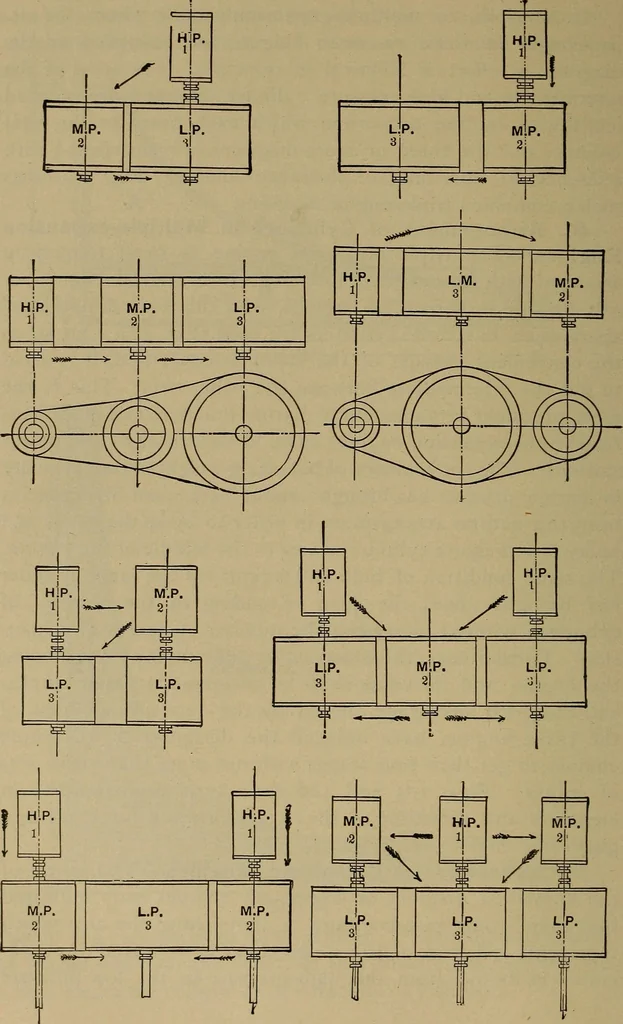

h not more than three setsof cranks. Figs. 105 and 106 show type arrangements inelevation and direction of the steam-currents for triple andquadruple engines respectively. 67. Reheaters for Compound Engines.—The study ofthe combined diagram of compound engines early indicatedthat there would be… … Fig. 105.—Grouping of Cylinders of Triple-expansion Engines. SIMPLE AND COMPOUND ENGINES. m H,P. / M.P.2| T MJP. L.P. .41 h:p. 1 mIp.3 MlP. 2 M- LP. 4 f
