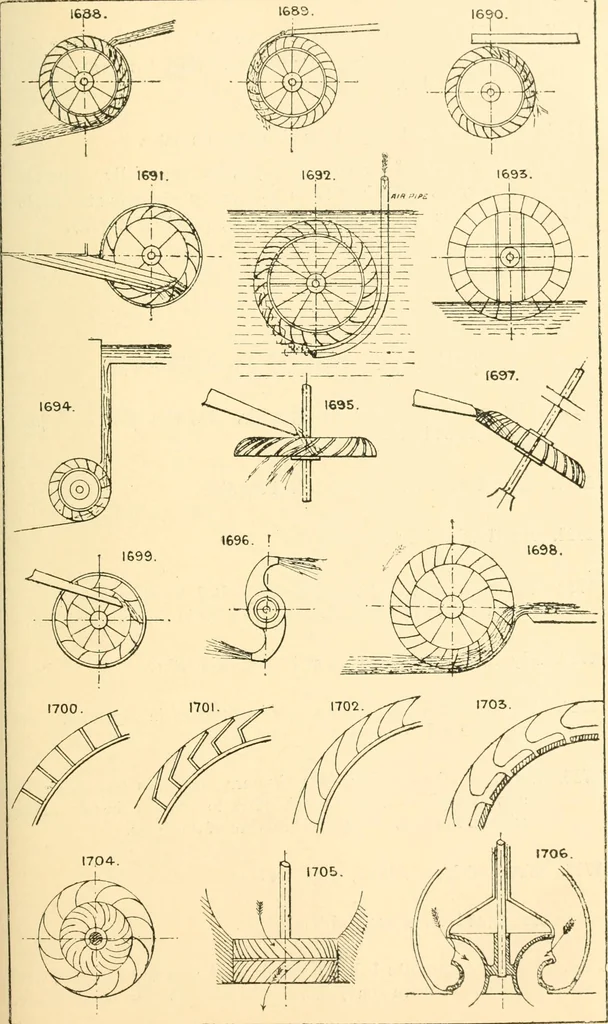

Sections of various forms of buckets in wood andiron. No. 1703 is a ventilated bucket which allows air to escapeas the water enters. For governing speed of water wheels and turbines, see Section 41. 1704. Fourneyron^s turbine, outward flow; the outer vanes are fixed, the inner ones revolve with the… … 212 IB.^ ENGINEEBS SKETCH-BOOK. 1707. LefFels turbine, inward and downward flow ; has one outer ring of fixed vanes and two inner sets revolving, but having differentangles of flow. 1708. Undershot jet wheel for high pressure water. Many other forms of turbines are extant, but are mostly…
