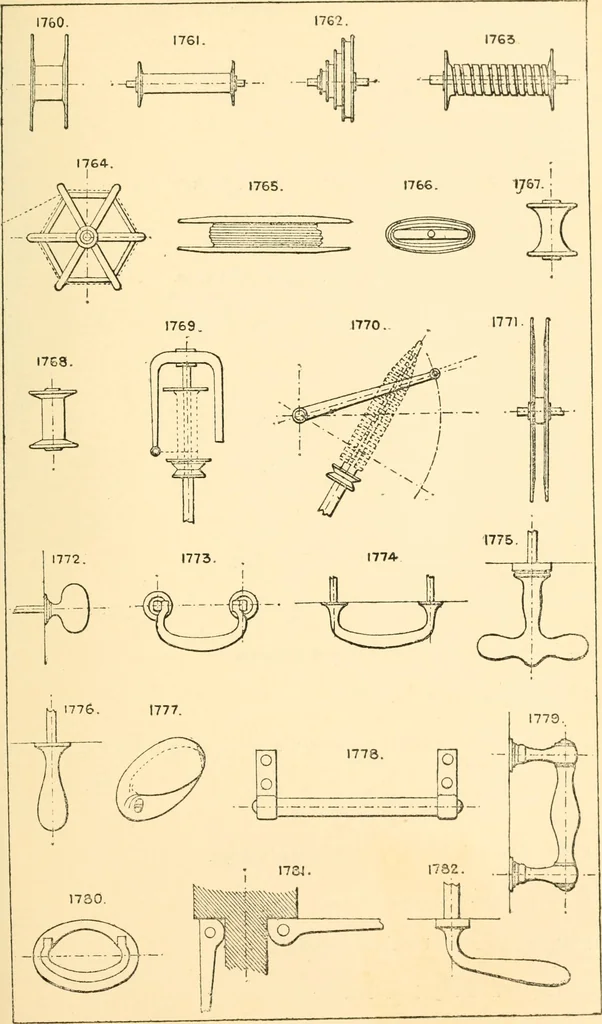

um, for flat rope or chain wound upon itself. For winding engines ond winches, see Nos. 1222 to 1226.See also Eope Gear, Section 66. Section 97.—HANDLES, &c., FOR VARIOUS PURPOSES. 1772. Knob handle. 1773. Loop handle, hinged. 1774. Loop handle, fixed. 1775. T handle. 1776. Plain handle. 1777.… … 2 22 THE ENGINEERS SKETCH-BOOK, 1783. Hand wheel. 1784. Cranked T handle. 1785. Capstan wheel. 1786. Bow or lifting handle, for ladles, buckets, &c, 1787. T bar handle, for two hands. 1788. Cross hand lever, four, six, or eight arms. 1789. Loop handle, sometimes cast into a casting, 1790. Ring…
