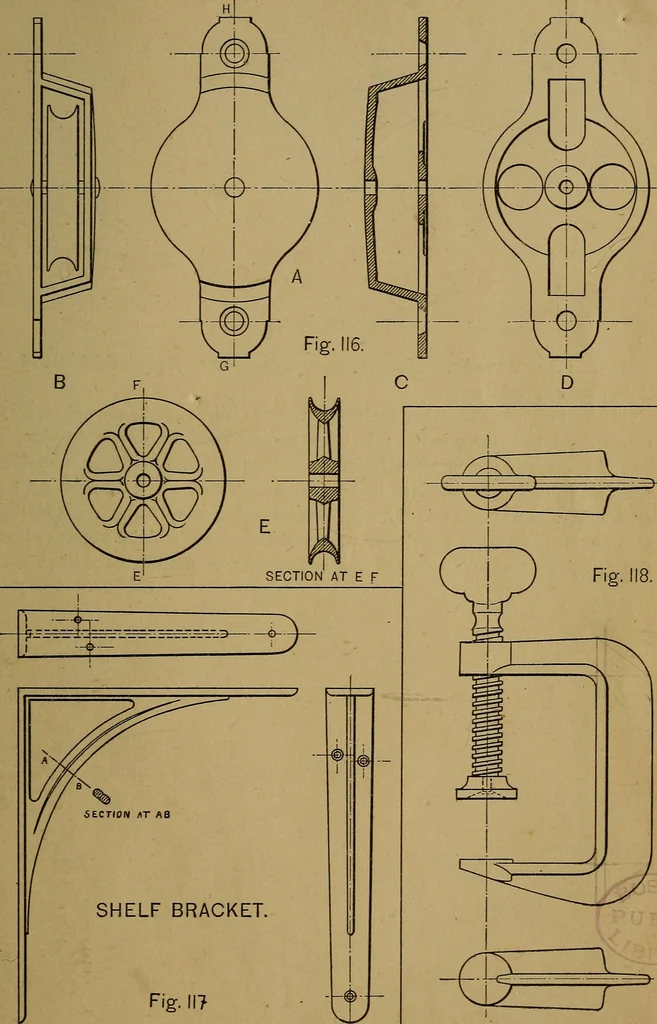

BRASS SPRING SECTIONS OF STRIKER 158 MECHANICAL DRAV/ING. PLATE XX. Fig. 116. Details of an iroti side ptdley. A is a front view of the pulley. B is a side view of the pulley. C is a section of the fraine on GH. D is a back view of the frame. E is a front view and a section on EF of the wheel. Fig.… … Fig. Il> IRON CLAMP. l60 MECHANICAL DRAWING. PLATE XXL Fig. 119. Free-hand sketches of an iron caster^ from which finisheddrawings are to be made. In making such sketches the proportions of all the parts should be rep-resented as truly as possible ; but the parts should be drawn free-hand,and…
