The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 257

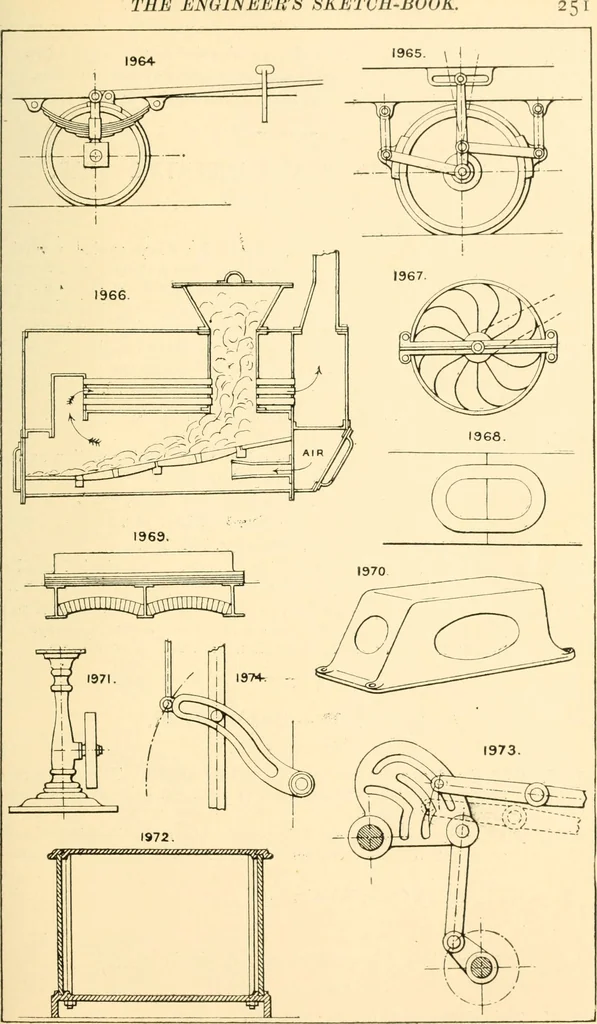

ructed of flat castings joined by grooves and fillets and long bolts or rivets. Columns, handrailing, and other parts of machine framings areusu 1 as air-vessels, drain-pipes, and for enclosing working rodsand I arts of machines. Section 9.—CAM, TAPPET AND WIPER GEAR. (See also p. 24.) 1973. Cam… … R I 252 THE ENGINEEBS SKETCH-BOOK. 1975. Spiral or wheel cam to give a reciprocatng motion to a bar. 1976. Compound cam. to operate a nuinl er of radial grips or arms. 1977. Internal compound cam to operate a number of radial slides for internal grip. Section 10.—CRANK AND ECCENTRIC GEAR. {See also…
Mechanical movements
