The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 263

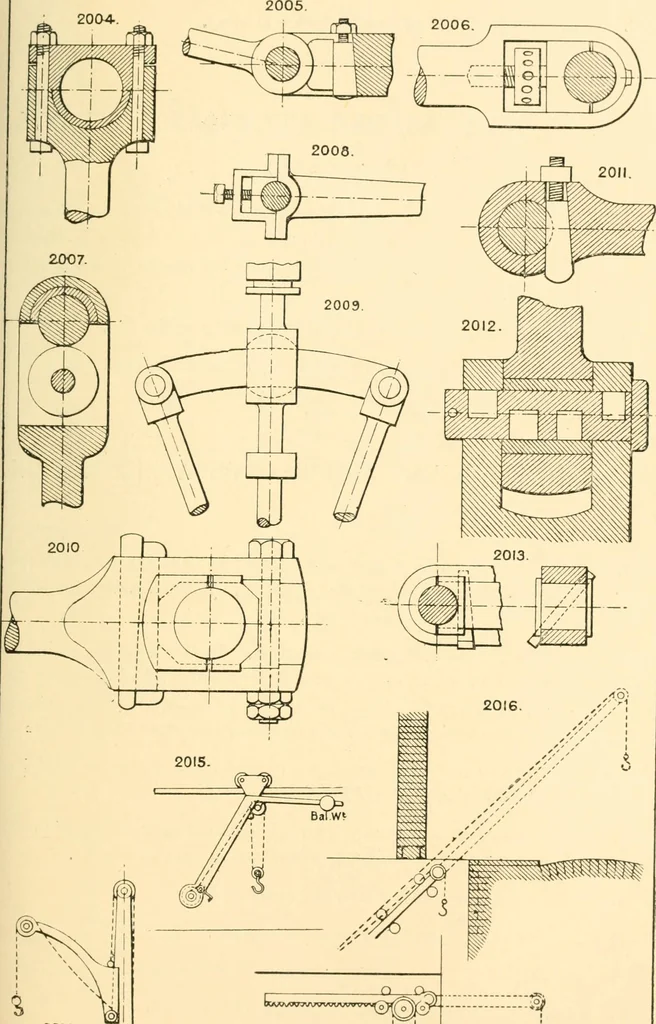

e wearing faces of the gudgeon pin. 2013. Strap end, with diagonal key. Sometimes more accessible thana straight key. Section 18.—CRANES, TYPES OF. {See also p. 46.) 2014. Crane, with sliding jib. 2015. Suspended travelling hand crane. 2016. Basement crane, projected diagonally upward when in use.… … 2014. ^ RftA?iA>«r7(A7WwuWTrcr«^2Jff^V^ 2017. 2 5^ THU ENGINEERS SKETCH-BOOK. 2018. Travelling wharf crane to span a railway. Section 20.~COMPENSATING AND BALANCE WEIGHTS. (See also p. 54.) 2019. Balance for a suspended light, lamp or sirailftr article, allowing it to be raised or lowered while…
Mechanical movements
