The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 267

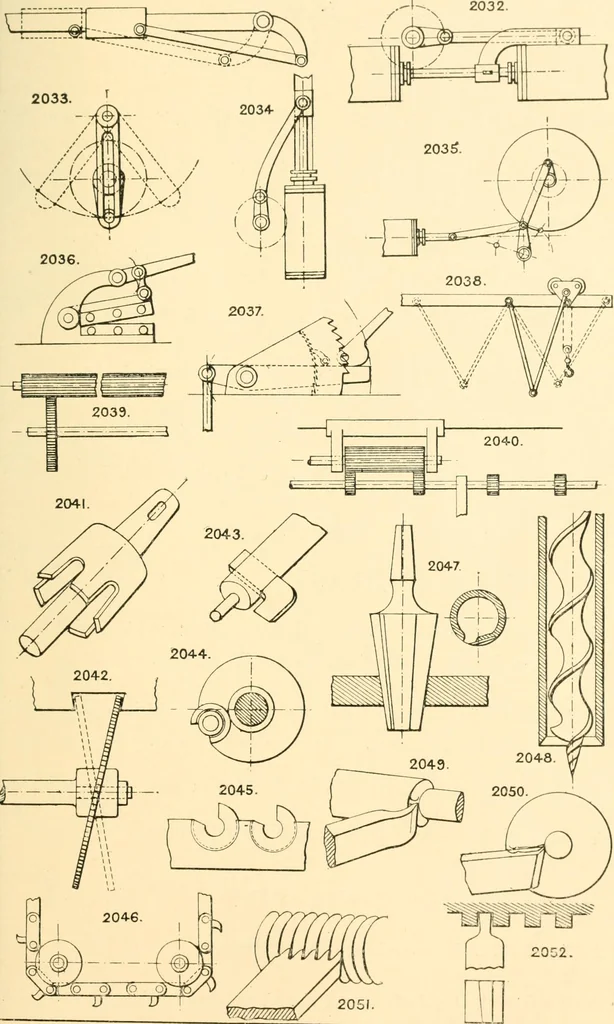

ted circular cutter. 2045. Inserted circular saw teeth, easily sharpened, reset, or replaced. 2046. Chain cutter. 2047. Hollow taper bung borer. Bores a taper hole by enlarging a plain hole bored by an ordinary bit. 2048. Square hole boring bit, for wood. A square chisel containing a twist borer.… … ^r(o ^) (o ^:}f^ 262 TEE ENGINEERS SKETCH-BOOK. 2053. Turning tool for metal. V tool. 2054. Ditto 2055. Ditto 2056. Ditto 2G57. Ditto 2058. Ditto 2059. Ditto V tool for inside threads.Side tool for square shoulders. ditto right hand.Boring tool. ditto for square shoulders. ditto ditto…
Mechanical movements
