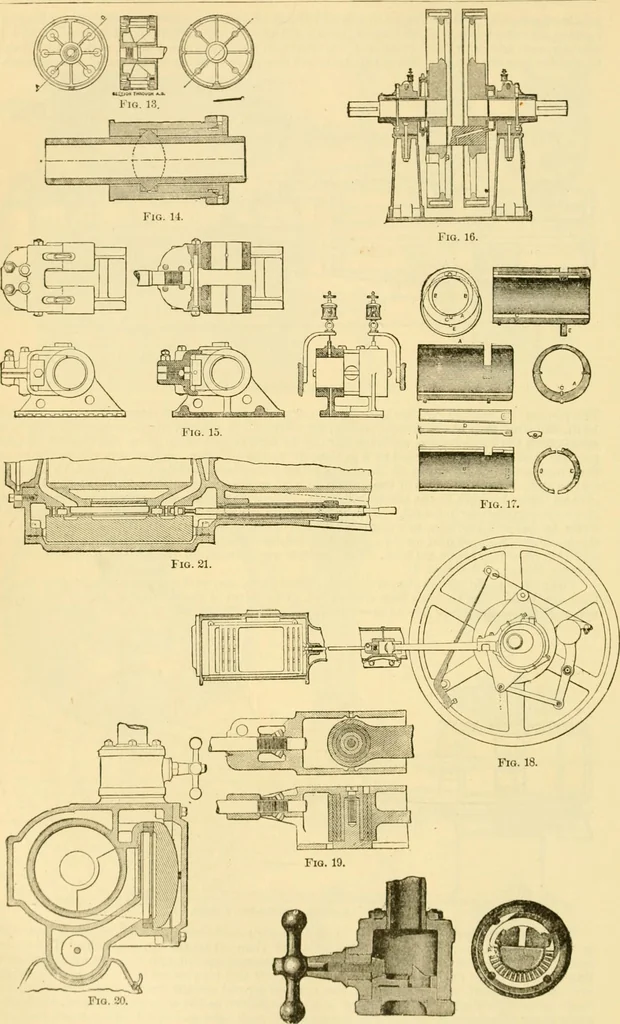

tt-lined boxes in the cross-head. The object of this is to secure lightness, extra wearingsurface, to prevent side swinging of the connecting-rod at the fly-wheel end, and to giveready means of oiling. The cross-head is what is known as the slipper-guide sort, the lowerguide being adjustable in the… … IlO. 22Fios. 13-22.—Dftuils of Sweets straif^lit-line engine. ENGINES, STEAM, STATIONARY RECIPEOCATING. 305 The crank-shaft and wheels are shown in Fig. 16. The steel crank-pin and shafts forcedinto the large bosses of the two wheels form a solid structure, dividing the strain equallybetween the…
