The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 277

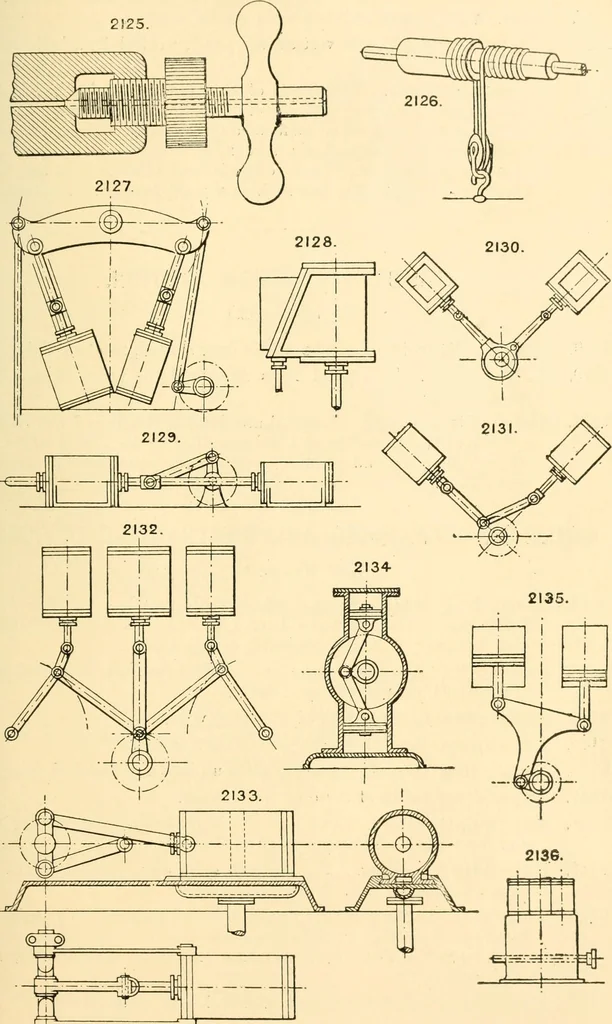

One crank engine, as last described. 2132. One crank three-cylinder engine. 2133. Sliding cylinder engine, with three-throw crank and three conuecting rods. The distribution of steam is made by thereciprocating motion of the cylinder over ports in the bedplate. 2134. Compound high-speed enclosed… … ^r^^^ <Q^ 2 72 THE ENGUSEEBS SKETCH-BOOK. 2137. American type of walking beam paddle engines. 2138. Diagonal engine, with vertical air pump, worked by a bell-crank lever. Vacuum engines. Two forms of this type of engine have beenmanufactured in vvhich steam is employed at atmospheric pressureand…
Mechanical movements
