The textile industries : a practical guide to fibres, yarns & fabrics in every branch of textile manufacture, including preparation of fibres, spinning, doubling, designing, weaving, bleaching, printing, dyeing and finishing (1910)
Murphy, William S · London : The Gresham Publishing Company · leaf 82

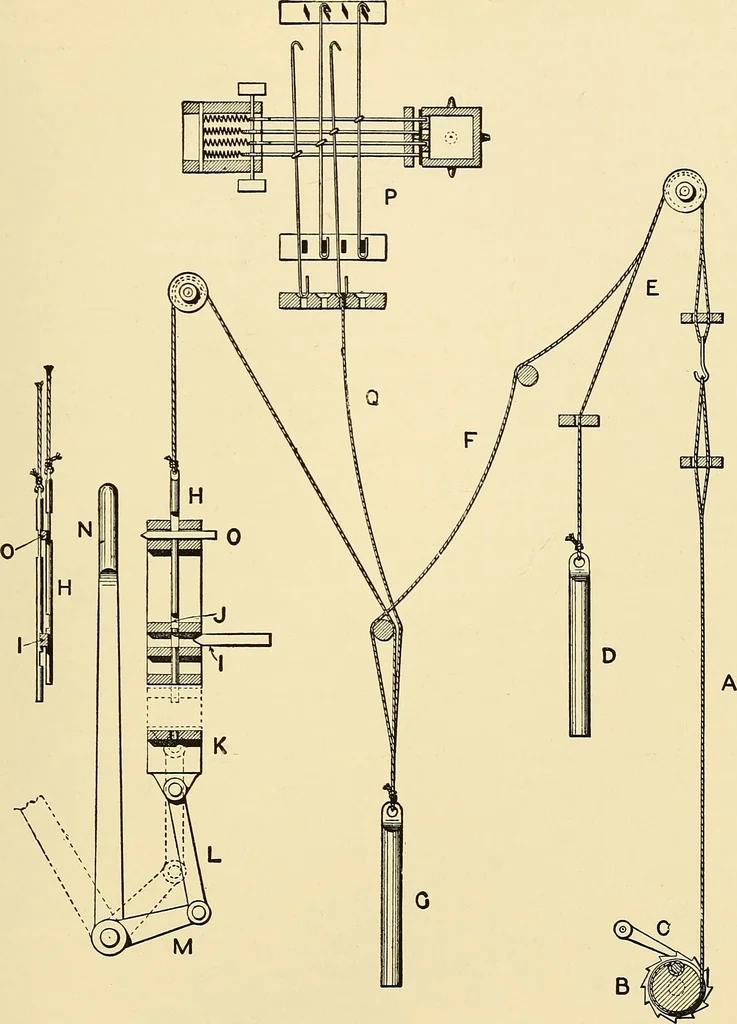

g, type-set-ting, and other machines. Upon a long iron table the whole of theprincipal parts of the machine are carried (fig. 286). From the tabletwo uprights support the pattern board, fitted with straight-edgesmovable by screws to any line of the design pinned on the patternboard. A pair of… … Fig. 2S5.—Diagram of Reading-in and Repeating Card-cutting Machine with Single-lift Jacquard A, Vertical draw cords. B, Draw-cord roller. c, Pawl. D, Lingoe on draw cords. E, Splice of third setof cords on to second set. F, Third set of cords attached to cords of punches. G, Lingoe weighting…
Textile industry · Textile fabrics
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
