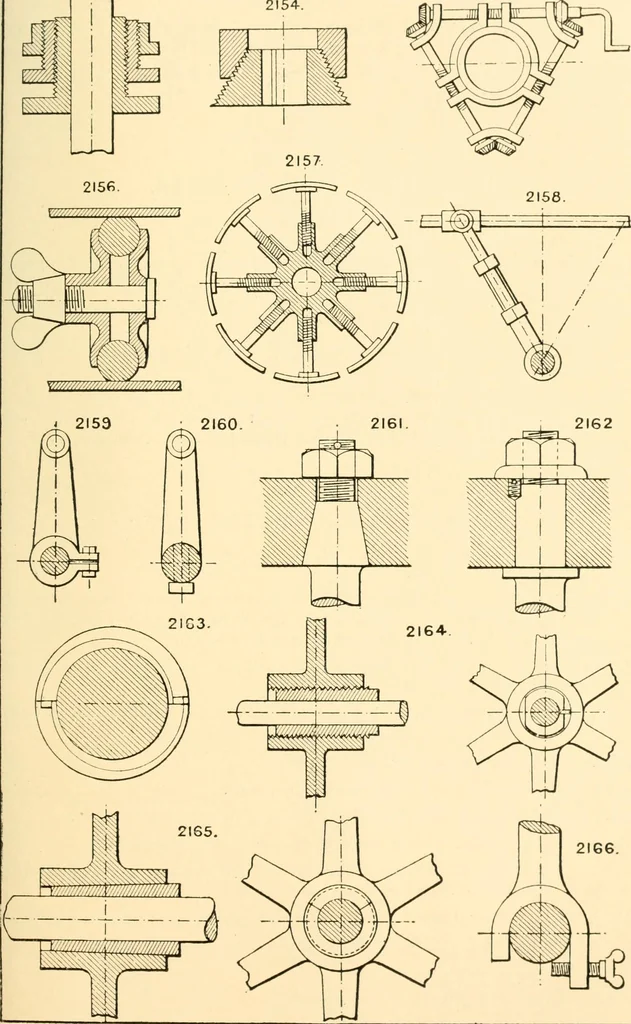

y a screwed shank passed through the shaft and drawn up by a nut. 2161. Piston and rod fastening. 2162. Ditto, ditto. 2163. Thomas patent wedge bush for securing plain bored pulleys, (fee, to shafts. 2164. Taper screwed bush fastening for a wheel, with frictional grip. The bush is split on one side… … 276 THE ENGINEERS SKETCH-BOOK, 2167. Split boss or collar, with two torms of sunk screws for fixing and tightening. Split wheels and pulleys are now commonly used as the bestmeans of fastening to slijilts. hee No. 1711. 2168. Cone sleeve (split) and nut lasttniug for a wheel or pulley. 2169.…
