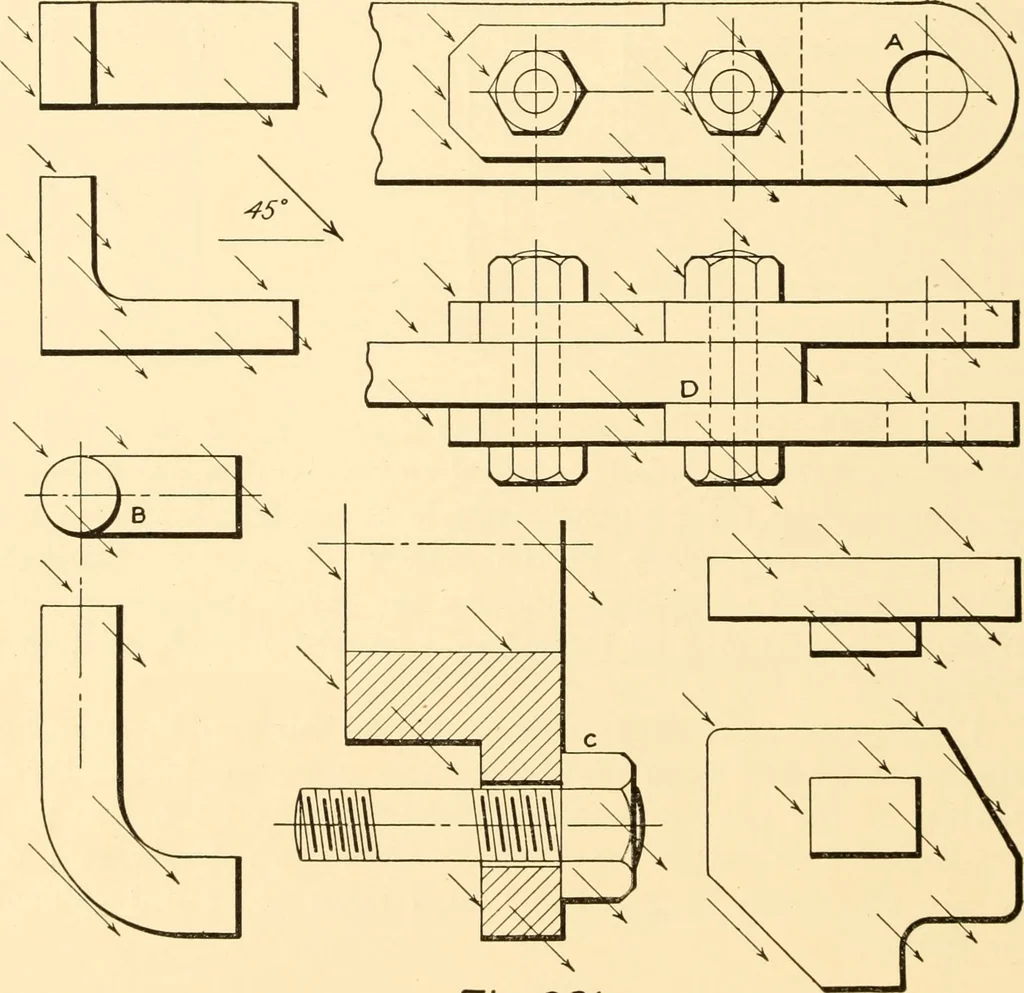

object can often be improved by reducingthe measurements along the oblique axis, using one half or threefourths of the full dimension. Measurements on the two per-pendicular axes remain unchanged. Two such treatments ofa cube are shown in Fig. 320. Such views are called cabinetprojection. CHAPTER… … F/g. 32/ In many lines of work detail drawings are never shaded and thisseems to be the best practice. Outline drawings or assemblydrawings which serve partly, at least, as picture drawings areoften improved by shading. 136 SHADE LINE DRAWINGS 137 System in Common Use. — In the United States a…
