The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 289

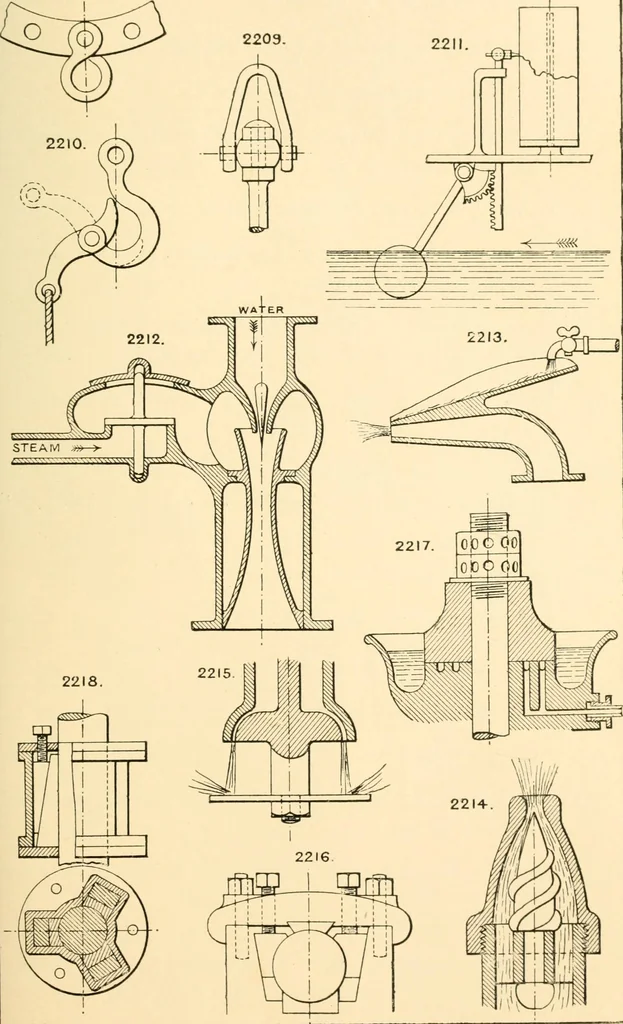

RNALS, BEARINGS, PIVOTS, &c. (See also p. 102.) 2216. Pedestal bearing, with four brasses and set screw adjustments. 2217. Hydraulic oil pivot for vertical spin lie. Oil under pressure is forced into the channels between the bearing faces, the area andpressure being adjusted to the load. The… … T 2 284 THE ENGINEERS SKETCH-BOOK. 2219. Long bearing, with oil circulation. 2220. V bearing, or support for a shaft or telescope. 2221. Plain double bearing, with one cap and one bolt. 2222. Vertical shaft bearing, formed of two similar toe-pieces of very hard steel running in oil. 2223. Pedestal,…
Mechanical movements
